LED Light Bulb Assembly Production Line

The LED light bulb assembly production line is specially designed and developed for assembling A19 LED bulb. The system has stable performance and high output of 1500pcs/h, which can help you improve work efficiency and save you money.

  • LED Light Bulb Assembly Production Line
  • LED Light Bulb Assembly Production Line
  • LED Light Bulb Assembly Production Line

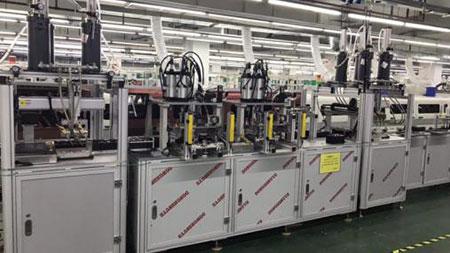

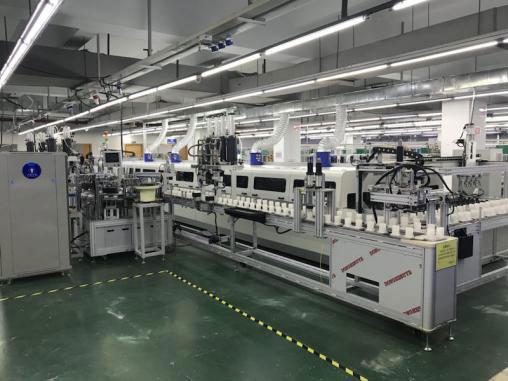

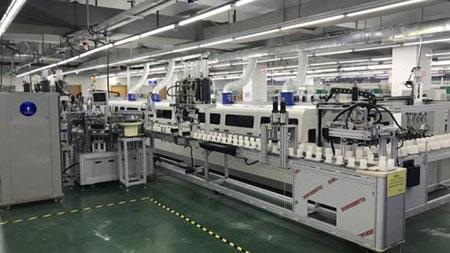

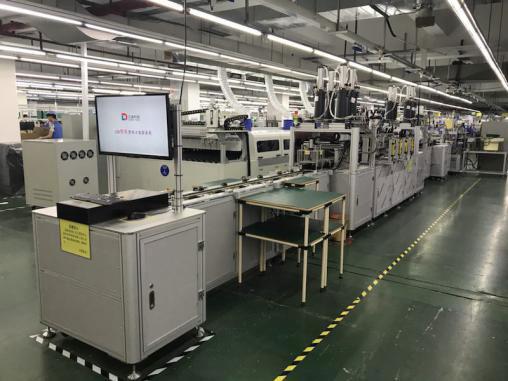

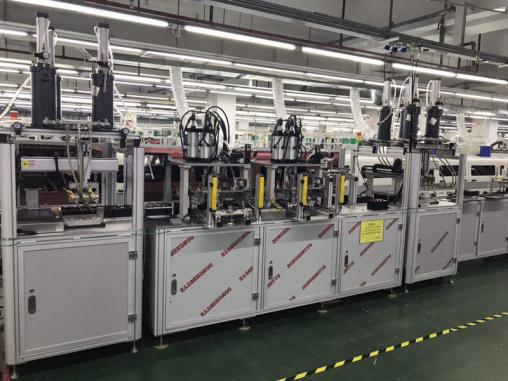

The automatic assembly line of LED bulb adopts segmented structure. The front section and the rear section with elevator and conveyor form a circular conveying system. The middle section adopts rotary table, which can effectively save space and realize efficient semi-automatic production.

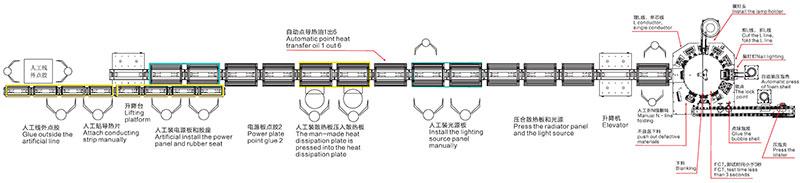

Production process
LED Light Bulb Assembly Production Line
Technical parameters
Overall dimension L22500*W2300*H1600mm
Model A19 light bulb
Operating system Windows XP system
Display LED display
Input device Mouse, keyboard
Design capacity 1800pcs/h
Actual capacity 1500pcs/h
Rated voltage AC220V； 50HZ
Rated power 13.4Kw
Rated pressure 0.5-0.7MPa
Transmission method Chain, belt, cylinder
Gross weight 5200Kg
Dispensing accuracy ±0.2g
Dispensing cartridge scale Standard 2600cc

Note: our company LEADY can customize the automatic assembly line of LED bulb according to your requirements, such as size, function, production speed, etc.
