Automatic Disposable Mask Production Line

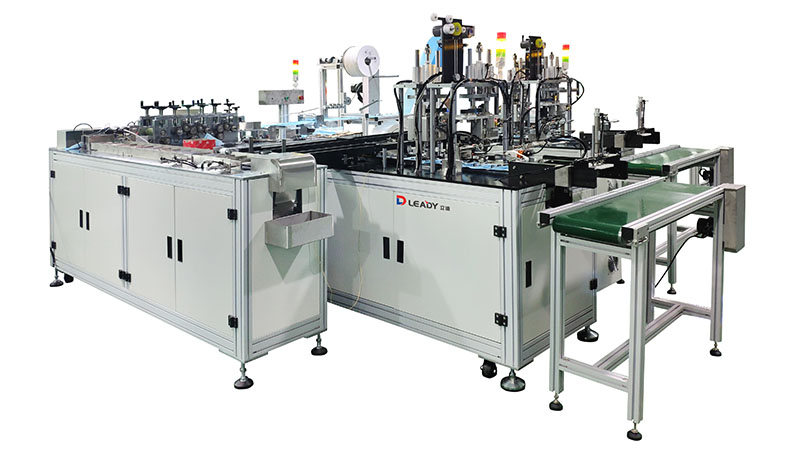

This is an automatic production line for disposable face masks, which consists of a mask body production machine and two cotton band production machines.
The main automation processes include the coil material feeding, mask folding and compression welding, nose bridge strip feeding, mask forming and cutting, ear band feeding, ear band welding, ear band finishing, and finished products stacking, etc.

- Using ultrasonic welding masks.
- Automatically assemble the mask without operators
- Only needs 1~2 operators to load and unload the material
- High production capacity with 5500~6000pcs/h
- Can connect with the packing line which has the sterilization function

• Model: LD-M6000
• Machine size: 4280*3500*1800mm (L*W*H)
• Operating mode: Fully-automatic

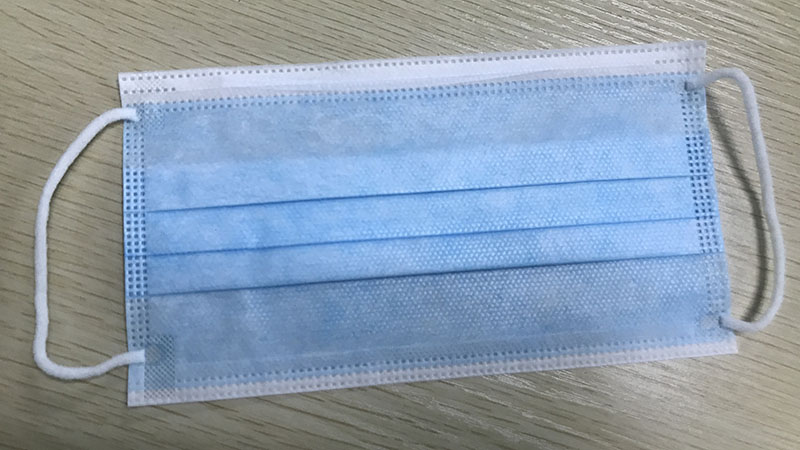

• Mask specification: 175*95mm (L*W)
• Design Capacity: 6000pcs/h
• Control system: PLC/ Relay
• Working voltage: AC220V 50/60Hz
• Power: 20KW
• N.W: 1200KG
