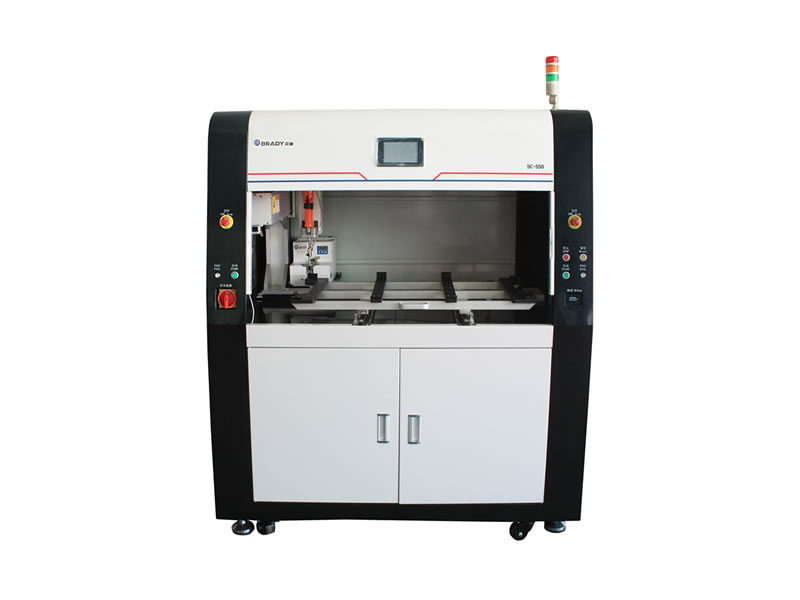

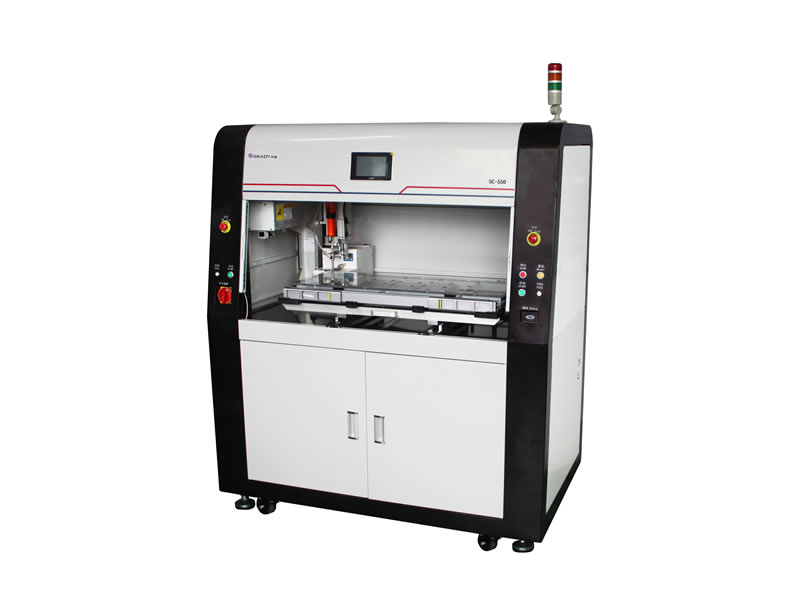

SC-550 Screw driving robot is designed to fasten screws of electronic products such as server, GPS, sound equipment, automotive electronics, laptop, tablets, learning machines, small appliances, etc.

• The screw driving robot has an automatic detection of screw missing, screw slip teeth and floating lock.

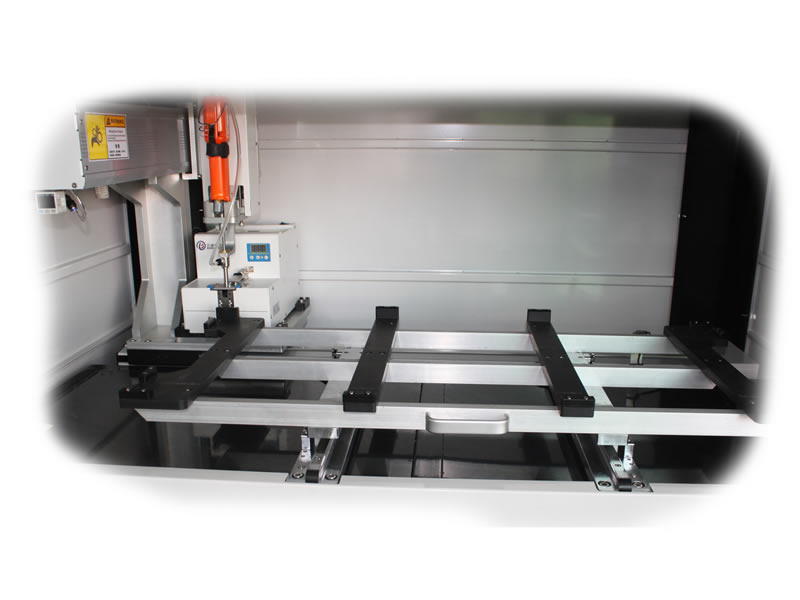

• Excellent flexibility. Equipped with universal fixture which allows this screw fastening system to be used on various products.
• Excellent versatility. Screws of M1.0-M8.0 can be fastened using this machine by replacing different accessories.
• With large worktable of 900*600mm.

• Dimension: 1350*950*1650mm (L*W*H)
• Working range: 900*600*120mm (X*Y*Z)
• Drive mode: 3 axis precision stepping drive
• Position accuracy: ±0.02mm
• Guide rail: Import slid rail
• Control system: PLC + Touch screen control system
• Screw feeding mode: suction type
• Quantity: 1group
• Type of programming: Teaching type
• Fastening speed: Less1.5~2.5S/PCS
• Program memory: 100 sets, 110 points/set (max.)
• COM: USB
• Power supply: 220VAC、50HZ
• Air pressure: 0.4Mpa
• N.W: 135kg
