SMT Dispensing Machine with Pick-and-Place

SMT Dispensing Machine with Pick-and-Place

SMT dispensing machine has functions of dispensing and pasting on plates with high precision. It is mainly used in the production of LED screen to improve the production efficiency and quality.

Characteristics

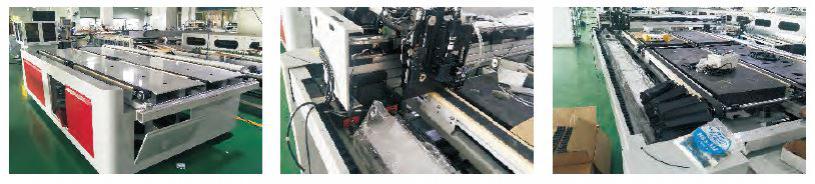

Desktop Dispensing Robot
  • Plates with sizes of MIN1000*1000mm-MAX3100*1500mm and thickness less than 30mm can be processed.
  • Plates made of glass, PCB, metal and other materials all can be processed by this robot.
  • Equipped with high speed linear motor driver and grating ruler, the machine can realize precision displacement.
  • Surface mounting glue, conductive glue, IC packaging glue, bottom filling glue, sealant glue and other glues all can be used with this robot.
  • Pneumatic jet valve, piezoelectric valve and other dispensing valves are supported.
Technical parameters
  • Dimension of pick-and-place machine: L4250*W2700*H1350mm
  • Dimension of conveyor: L3700*W2000*H9400mm
  • Installation weight: 4600Kg
  • Conveyor weight: 800Kg
  • Rated voltage: AC 220V
  • Frequency: 50HZ
  • Rated current: 60A
  • Dimension: max 3100*1550mm; height: max 30mm
  • Accuracy of dispensing weight: ±5mg (adjustable)
  • Accuracy of dispensing position: 0.05mm
  • Accuracy of placement position: ±0.1mm
  • Design capacity: ≥550pcs/h
