SD-450Ⅱ-R Automatic Soldering Robot

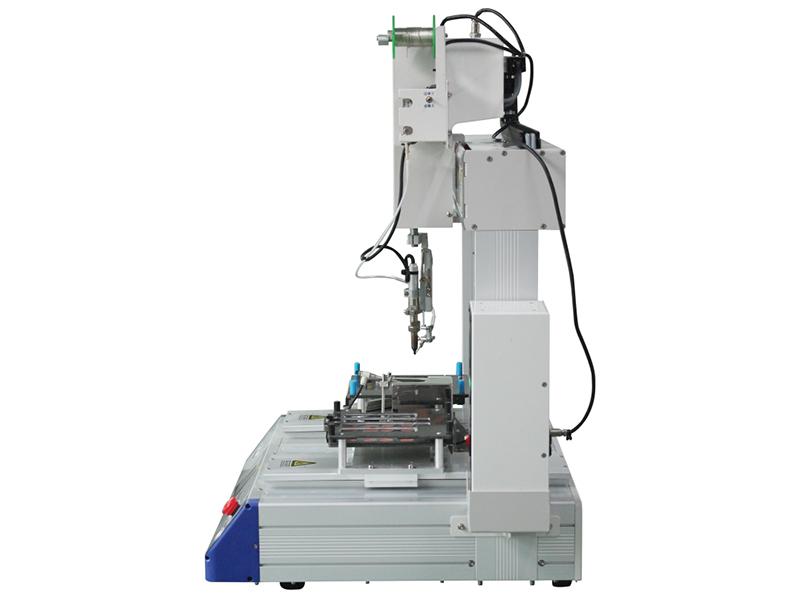

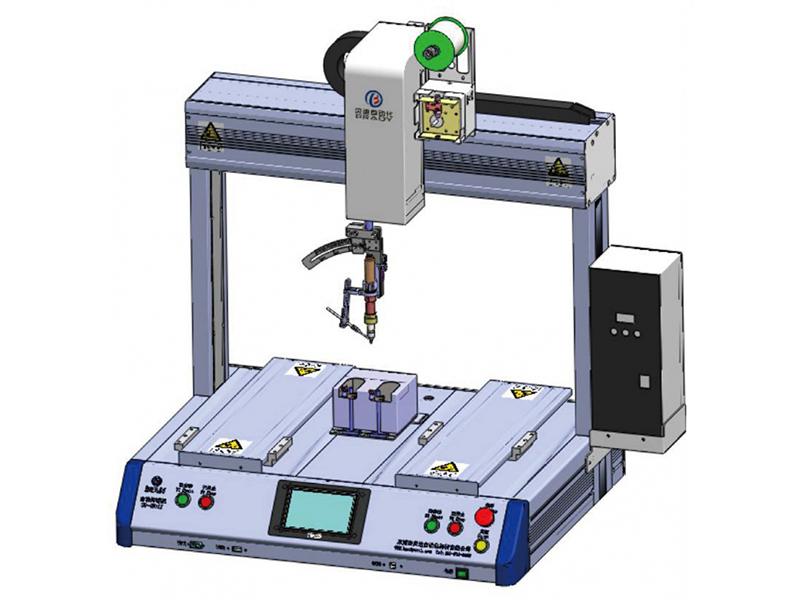

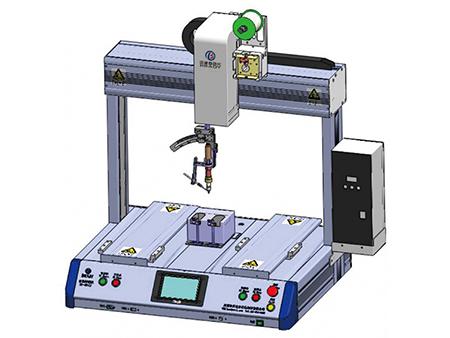

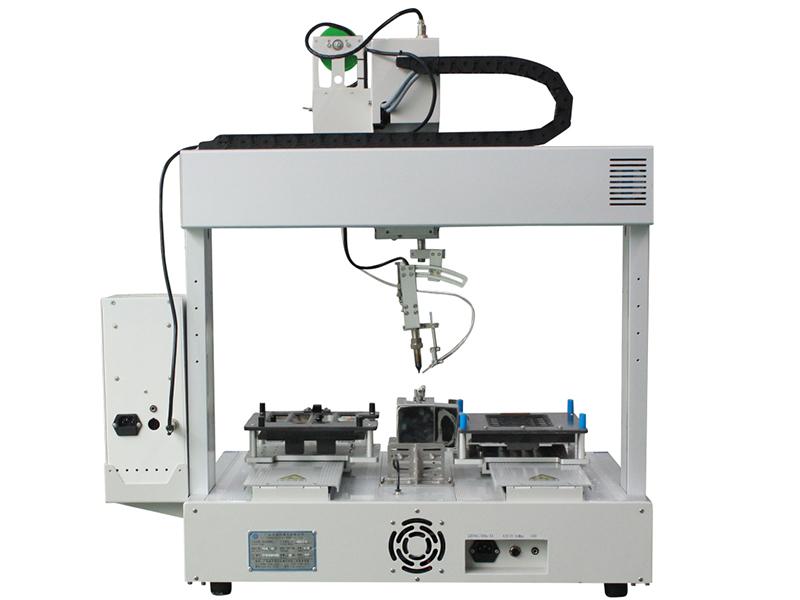

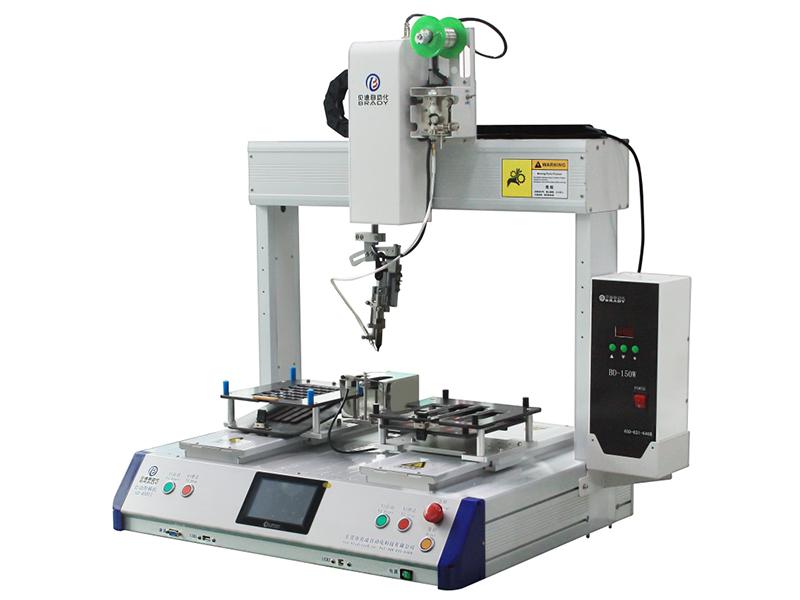

SD-450 Automatic Soldering Robot
SD-450 Automatic Soldering Robot SD-450 Automatic Soldering Robot SD-450 Automatic Soldering Robot

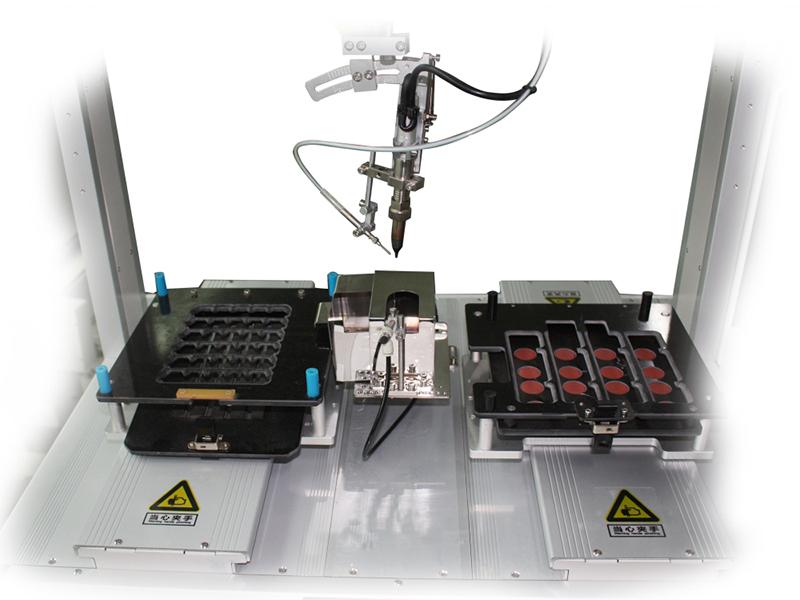

SD-450Ⅱ-R automatic soldering robot adopts six-axis motion control system, which enables two platforms to work together and doubles the operation efficiency. This soldering robot machine has high heating efficiency, fast heating speed and good soldering quality.

Characteristics
  • SD-450 Automatic Soldering Robot
  • The automatic soldering robot has functions of spot welding, drag soldering and automatic cleaning.
  • The robot has functions of automatic positioning, copying, arrangement and position correction.
  • Various parameters in the soldering process can be set to guarantee the soldering quality.
  • The 5 inches touch screen can provide a simple interface, leading to an easy and fast operation.
  • The slideway and screw is adopted to transmit power, which leads to a high accuracy motion.
  • The machine adopts automatic solder wire feeding system with editable multi-stage solder wire feeding mode.
Technical parameters
  • SD-450 Automatic Soldering Robot
  • Dimension: 570*550*830mm (L*W*H)
  • Working range: 460*330*100mm (X*Y*Z)
  • One-sided working range: 200*330*100mm (X*Y*Z)
  • Number of platform: 2 (single Y axis operating)
  • Drive mode: 5 axis precision stepper motor
  • Position accuracy: ±0.02mm
  • Position accuracy of R axis: ±0.05°
  • Program memory: 256 sets, 400 points/set
  • Temperature control power: 150W/320W
  • USB port: programs interoperable among many machines.
  • Power supply: 220V, 50HZ
  • Air pressure: 0.3MPa
  • Net weight: 50kg
