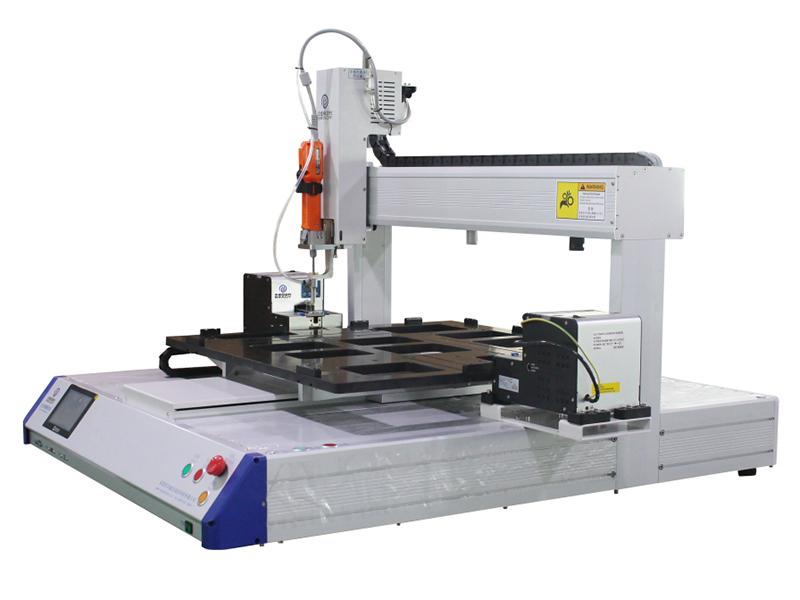

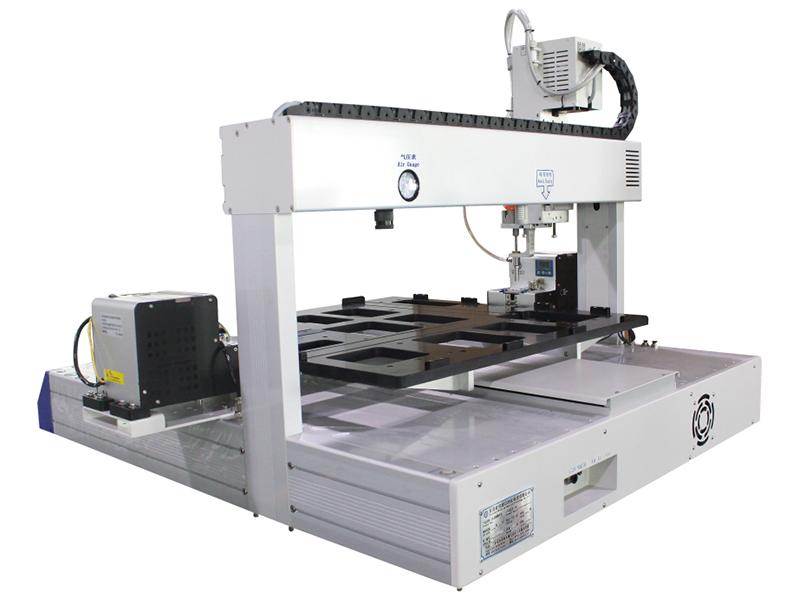

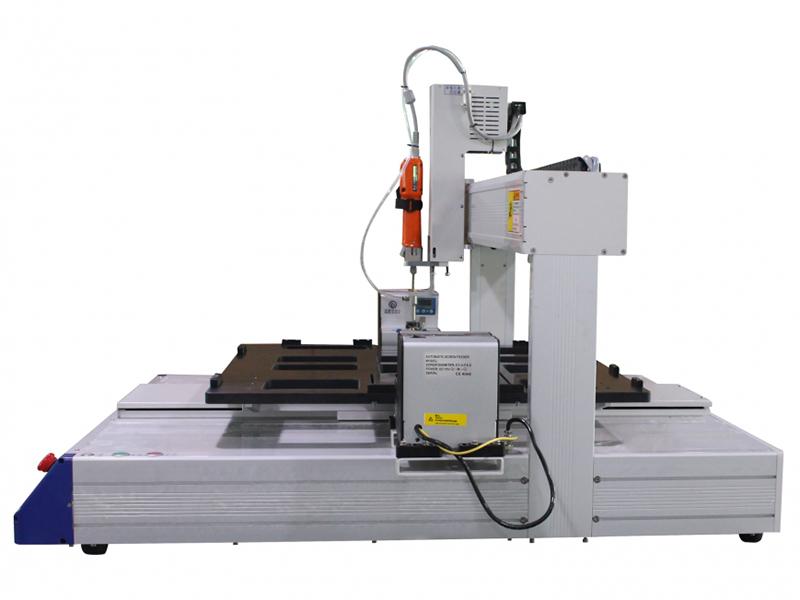

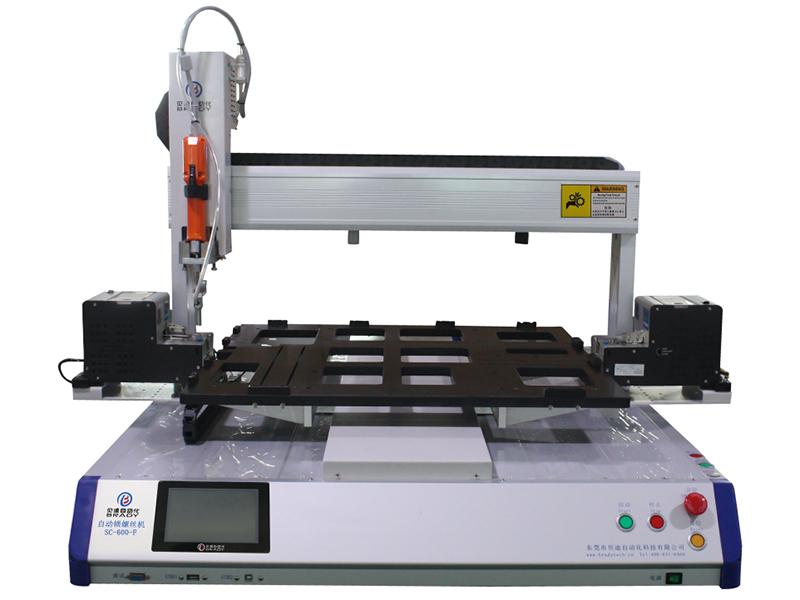

SC-600F Screw Driving Robot

SC-600F Screw Driving Robot
SC-600F Screw Driving Robot SC-600F Screw Driving Robot SC-600F Screw Driving Robot SC-600F Screw Driving Robot

SC-600F screw driving robot adopts three-axis precision stepper motor with a working range of 650*680*100mm. It is suitable for fastening screws on various electronic products.

Characteristics
  • SC-600F Screw Driving Robot
  • The screw driving robot realizes automatic detection of screw missing, screw slip teeth and floating lock.

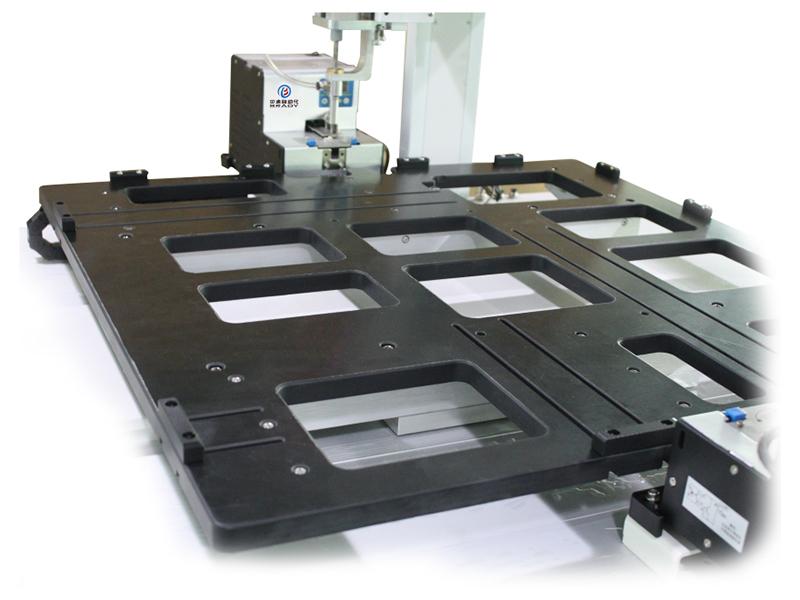

  • With large worktable and universal fixture, the robot has high flexibility and can be used on various products.
  • Screws of M1.0-M4.0 can be fastened using this machine by replacing screw conveyer, suction nozzle and screwdriver bit.
  • Two kinds of screws can be fixed on one product with a twin-screw feeder.
  • The screw driving robot is compact in size and is easy to pair with a production line. Automatically pick and tighten screws, greatly improve working efficiency.
Technical parameters
  • Dimension:860*1080*710mm(L*W*H)
  • Working range:650*680*100mm(X*Y*Z)
  • Drive mode:3 axis precision stepper motor
  • Positioning accuracy: ±0.02mm
  • Guide rail: high quality slide rail from internationally well-known brands
  • Control system: PLC+touch screen
  • Screw feeding mode: suction type
  • The number of screw feeder: 1-2 sets
  • Type of programming: Teaching type
  • Fastening speed: less than 1.5S/pcs
  • Program memory: 100 sets, 100 points/set(max.)
  • COM port: USB
  • Power supply: 220VAC, 50HZ
  • Air pressure: ≥0.4Mpa
  • Net weight: 65kg
