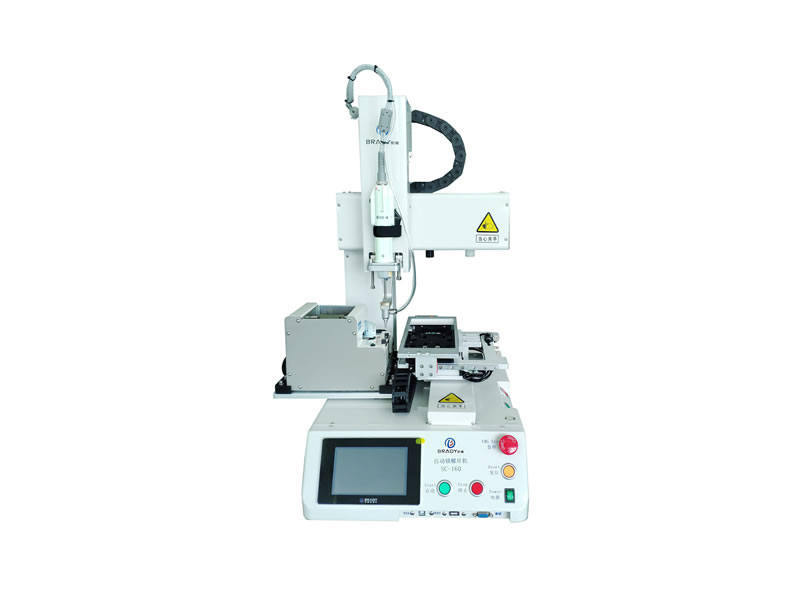

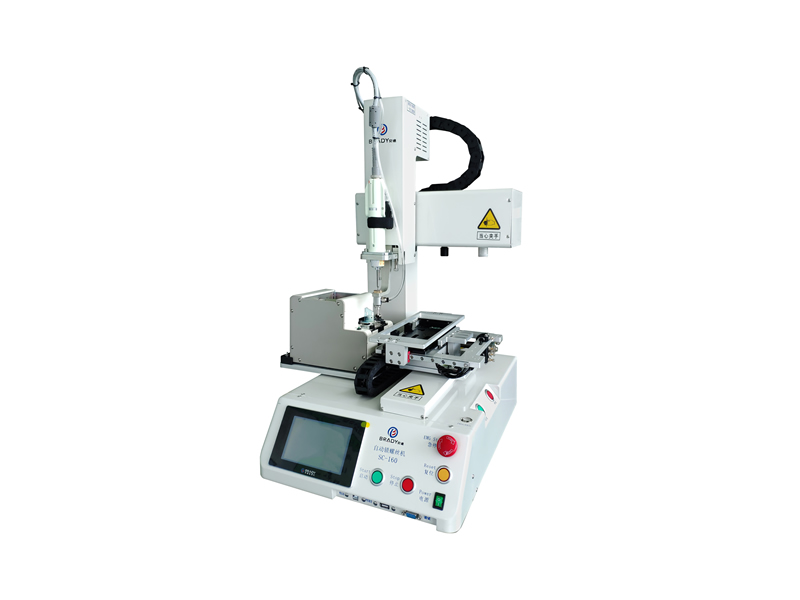

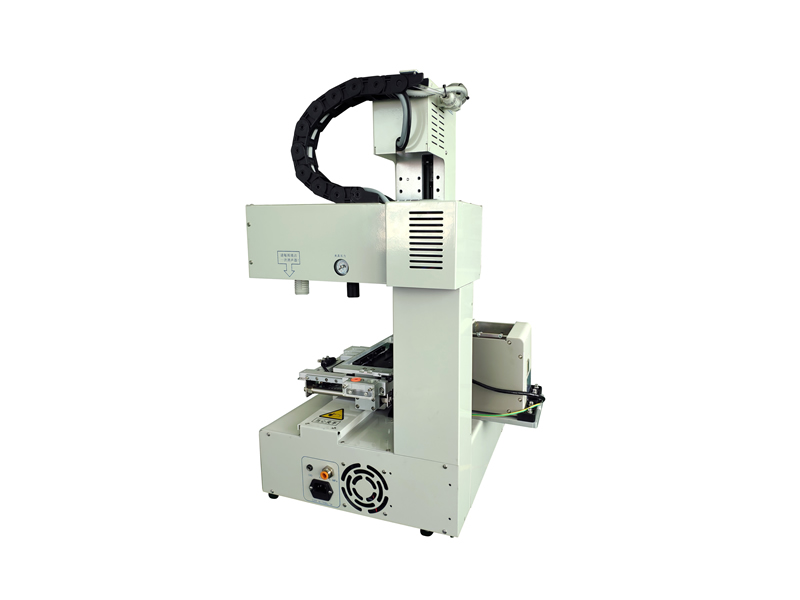

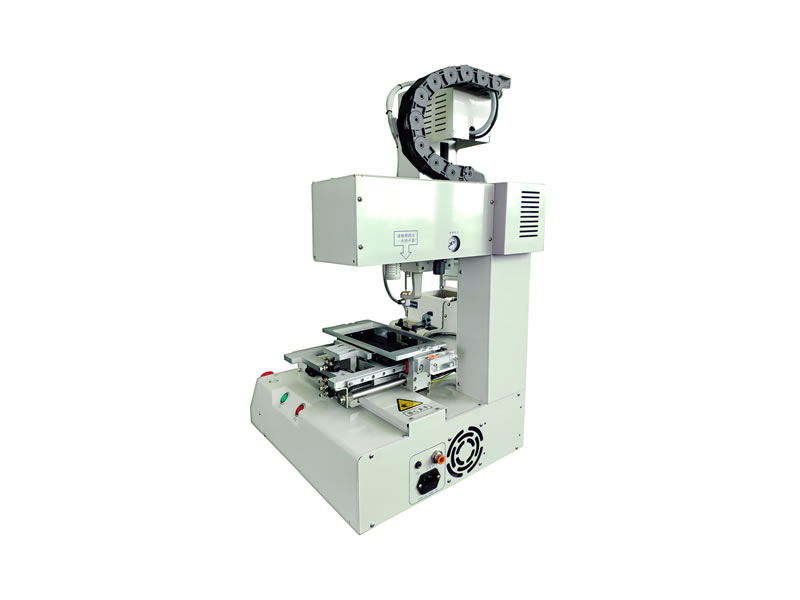

SC-160 Screw driving robot is designed to fasten screws of electronic products such as smartphone, wireless telephone, calculator, GPS, sound equipment, camera, small household appliances, toys, etc.

• The screw driving robot has an automatic detection of screw missing, screw slip teeth and floating lock.

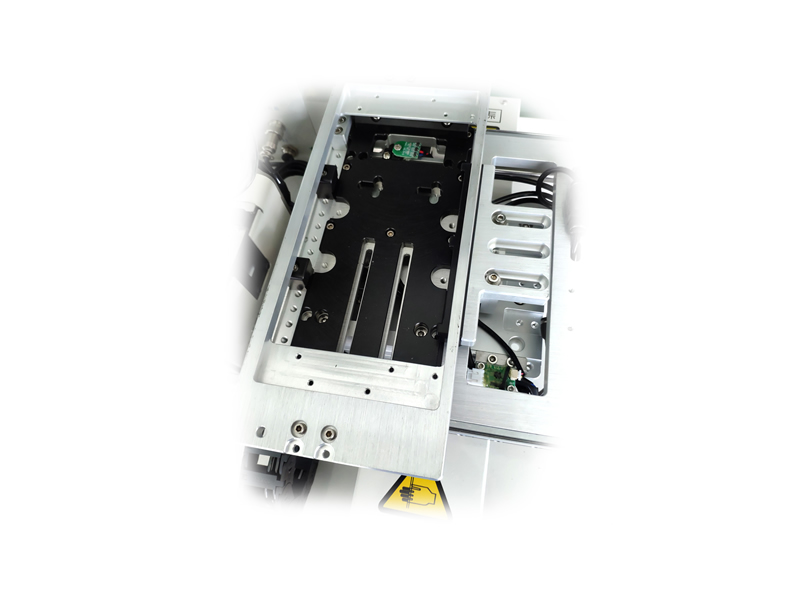

• Excellent flexibility. Equipped with universal fixture which allows this screw fastening system to be used on various products.
• Excellent versatility. Screws of M1.0-M4.0 can be fastened using this machine by replacing different accessories. Automatically screws loading in front and unloading from rear, realizing unmanned operation.
• The screw driving robot is compact in size and is easy to pair with a production line.
• Suitable for factory with limited area and its product is small in size.

• Dimension: 350*470*600mm (L*W*H)
• Working range: 160*230*70mm (X*Y*Z)
• Drive mode: 3 axis precision stepping drive
• Position accuracy: ±0.02mm
• Guide rail: Import slid rail
• Control system: PLC + Touch screen control system

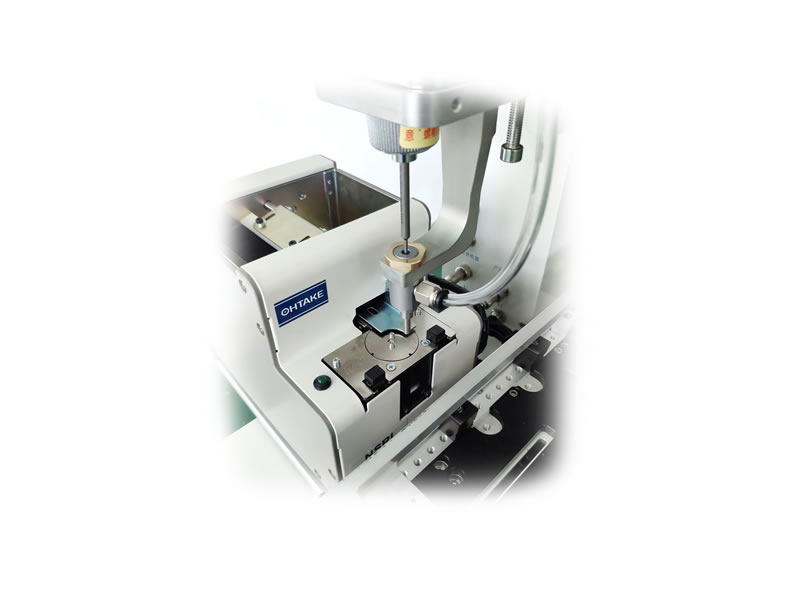

• Screw feeding mode: suction type
• Type of programming: Teaching type
• Fastening speed: Less than 1.2S / pcs
• Program memory: 100 sets, 110 points/set (max.)
• COM: USB
• Power supply: 220VAC、50HZ
• Air pressure: ≥0.4Mpa
• N.W: 30kg
