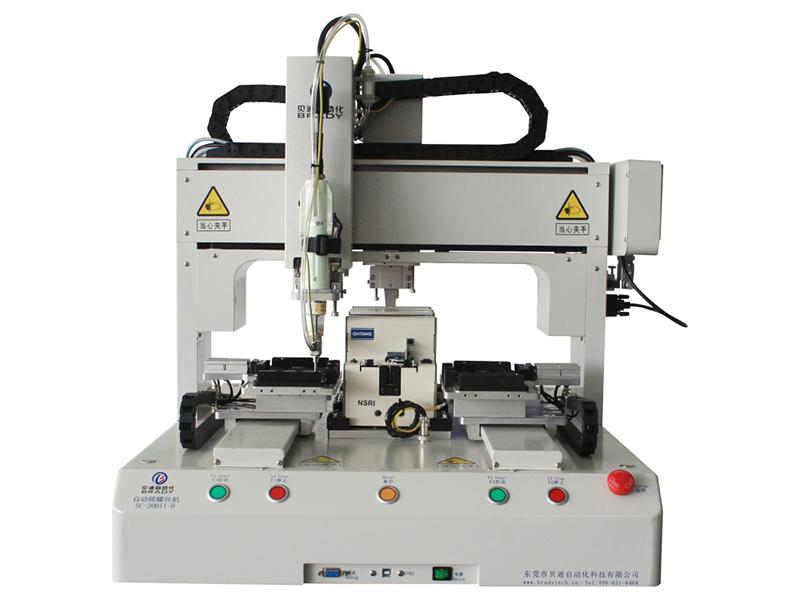

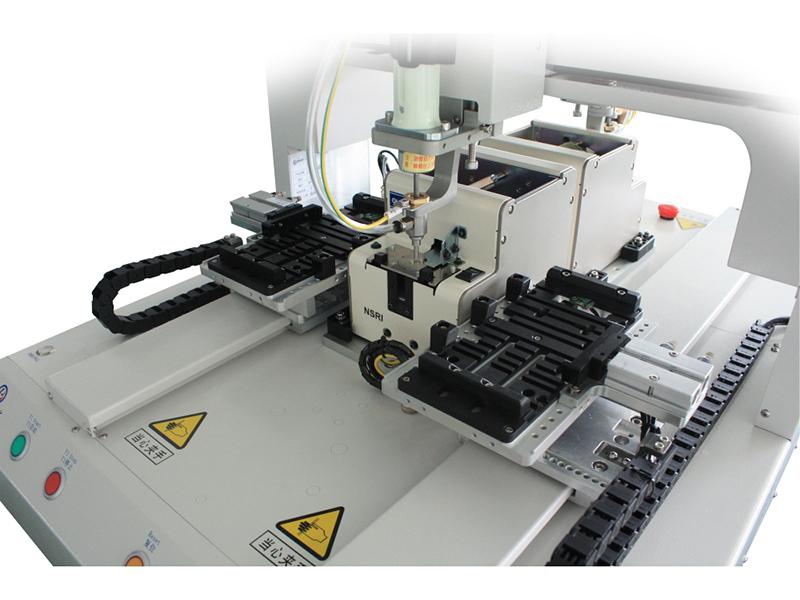

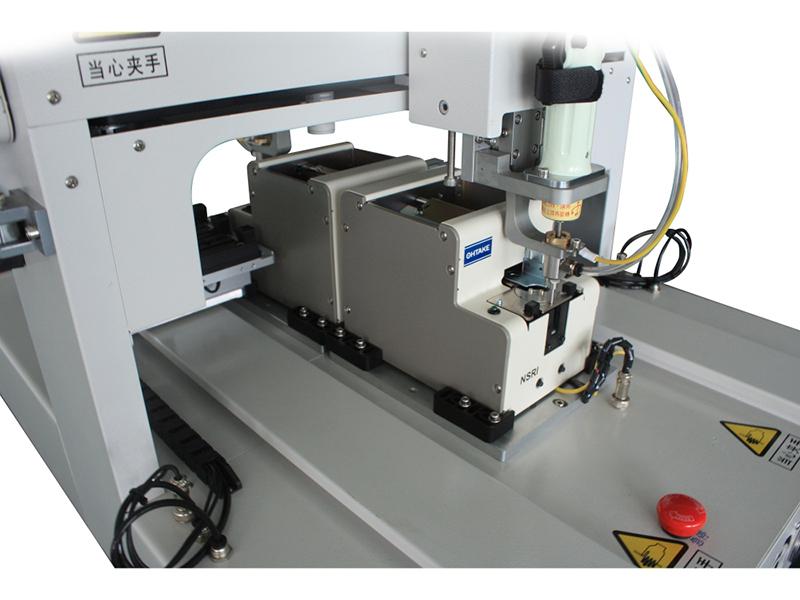

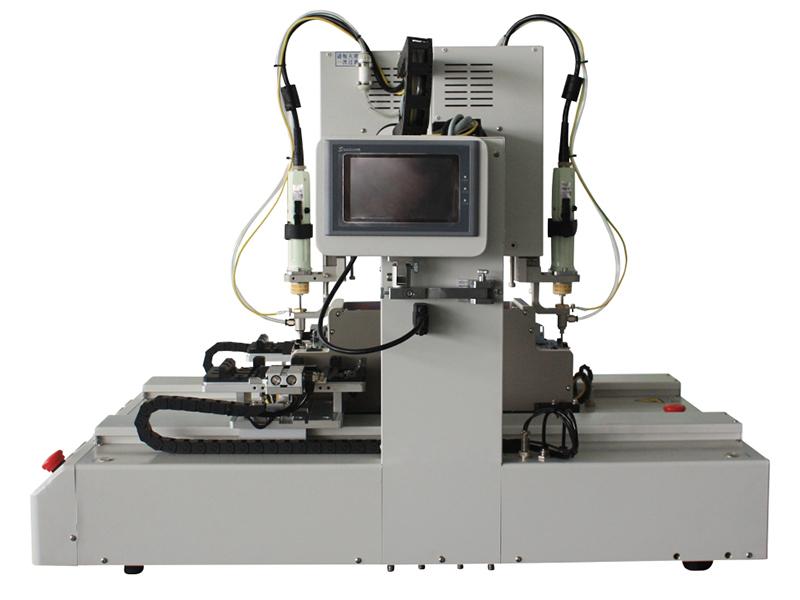

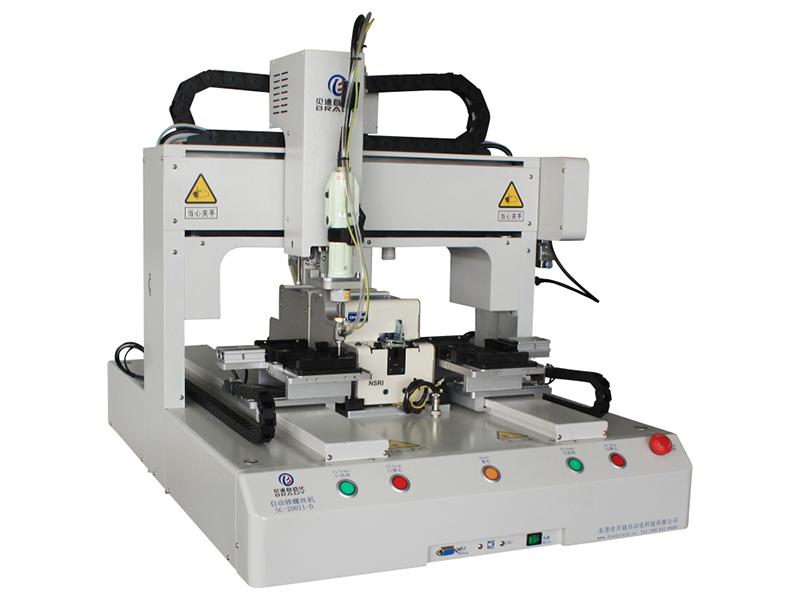

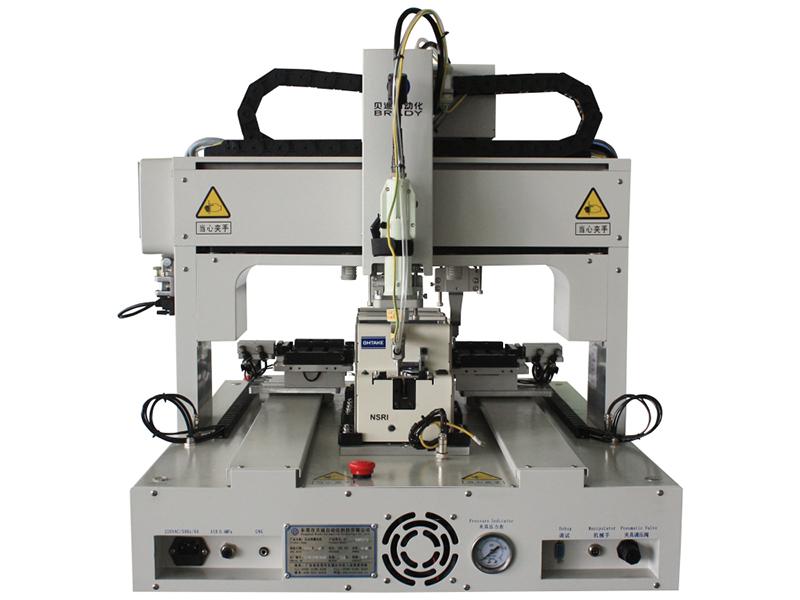

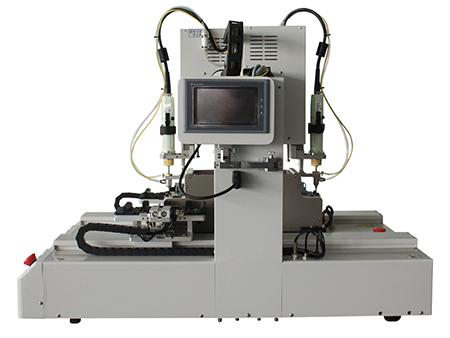

SC-200Ⅱ-D Screw Driving Robot

SC-200Ⅱ-D Screw Driving Robot
SC-200Ⅱ-D Screw Driving Robot SC-200Ⅱ-D Screw Driving Robot SC-200Ⅱ-D Screw Driving Robot SC-200Ⅱ-D Screw Driving Robot

SC-200Ⅱ-D automatic screw fastening robot has a spherical work envelope of 170*255*70mm, which features long reach and high agility, making it ideal for screwdriving complex parts. The robot can help you improve work efficiency, qualified rate and reduce labor costs.

Characteristics
  • SC-200Ⅱ-D Screw Driving Robot
  • SC-200Ⅱ-D Screw Driving Robot
  • The screw driving robot realizes automatic detection of screw missing, screw slip teeth and floating lock.
  • Equipped with universal fixture, the robot has high flexibility and can be used in various types of products.
  • Screws of M1.0-M4.0 can be fastened using this machine by replacing different screw conveyer, suction nozzle and screwdriver bit.
  • The screw driving robot is compact in size and is easy to pair with a production line. Automatically pick and tighten screws, greatly improve working efficiency.
  • The double XY-axis design can realize the alternate operation and eliminate the time of picking and placing products, which realizes fast screw fastening and maximizes the production efficiency.
Technical parameters
  • Dimension: 600*840*640mm(L*W*H)
  • Working range: 170*255*70mm(X*Y*Z)
  • Drive mode: 6 axis precision stepper motor
  • Positioning accuracy: ±0.02mm
  • Guide rail: high quality slide rail from internationally well-known brands
  • Screwdriver: HIOS
  • Control system: PLC+touch screen
  • Screw feeding mode: suction type
  • The number of screw feeder: 2 sets
  • Type of programming: Teaching type
  • Fastening speed: less than 1.2S/pcs
  • Program memory: 100 sets, 100 points/set(max.)
  • COM port: USB
  • Power supply: 220VAC, 50HZ
  • Air pressure: ≥0.4Mpa
  • Net weight: 80kg
