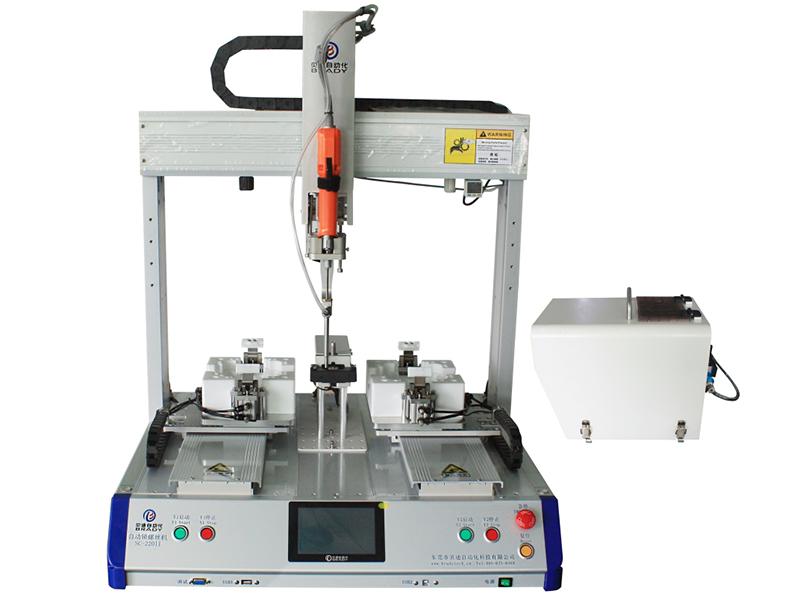

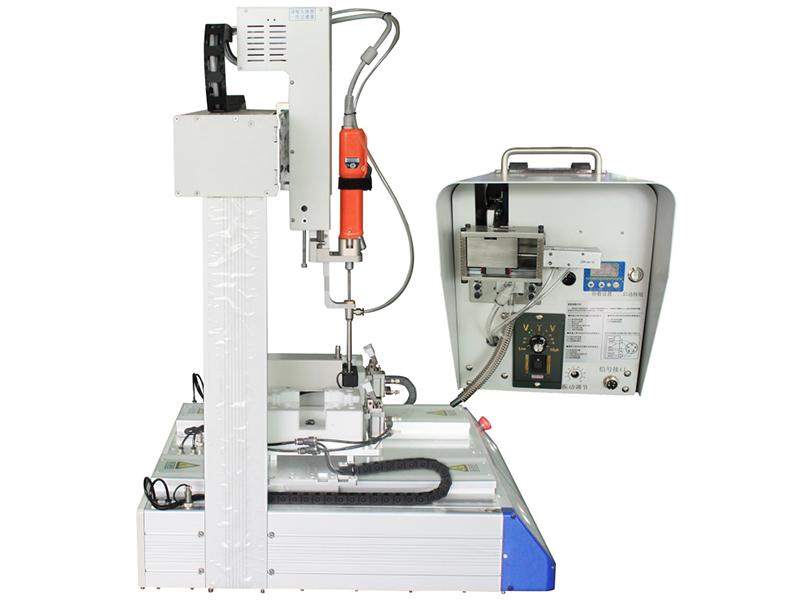

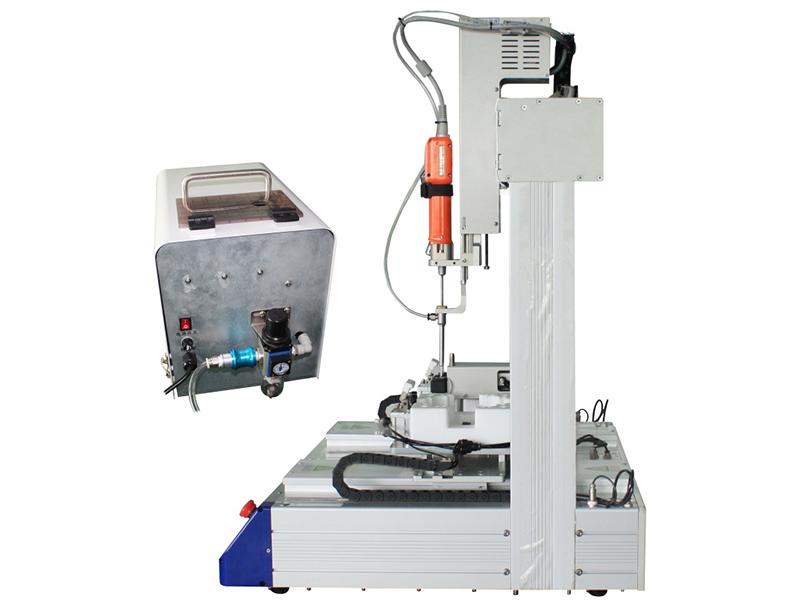

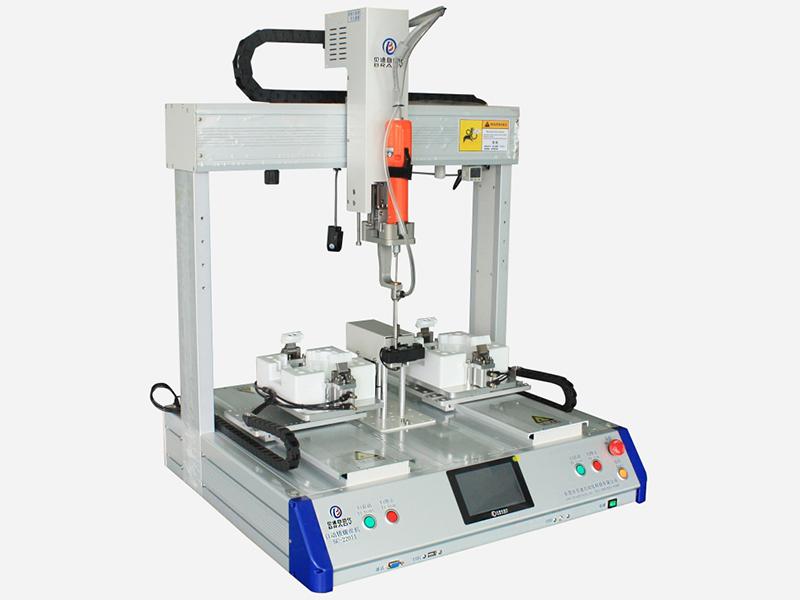

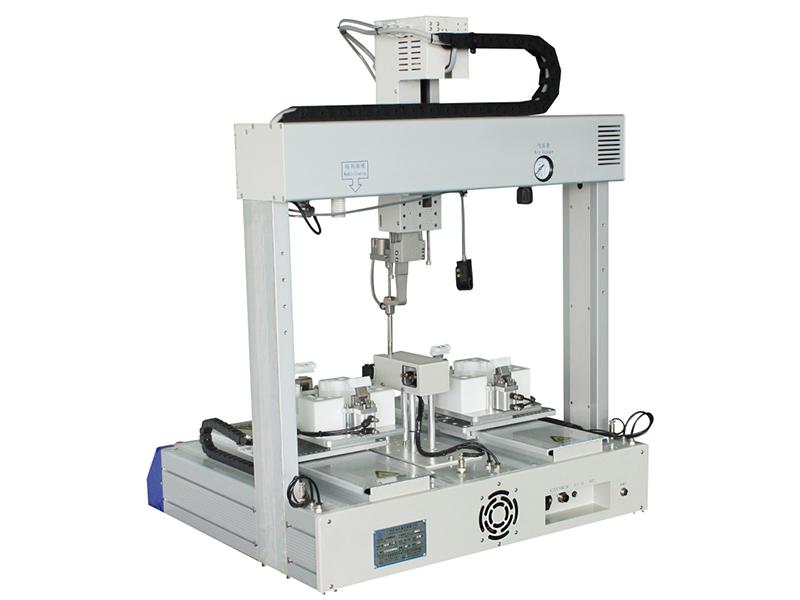

SC-220Ⅱ Screw Driving Robot

SC-220Ⅱ Screw Driving Robot
SC-220Ⅱ Screw Driving Robot SC-220Ⅱ Screw Driving Robot SC-220Ⅱ Screw Driving Robot SC-220Ⅱ Screw Driving Robot SC-220Ⅱ Screw Driving Robot

SC-220II screw driving robot adopts 4-axis precise stepper motor, double-platform structure and double XY axis design. This greatly improves productivity and ensures consistent quality of processed parts. The machine is widely used for screw fastening on electronic products.

Characteristics
  • SC-220Ⅱ Screw Driving Robot
  • SC-220Ⅱ Screw Driving Robot

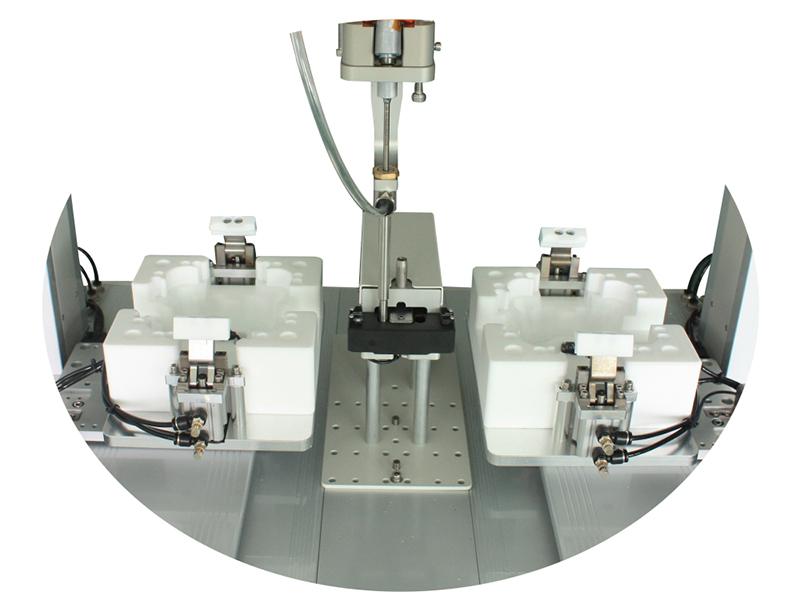

  • Adopting single-screwdriver-head double-platform structure, the screw driving robot can fasten screws on products of two different specifications.
  • Equipped with universal fixture, the robot has high flexibility and can be used in various types of products.

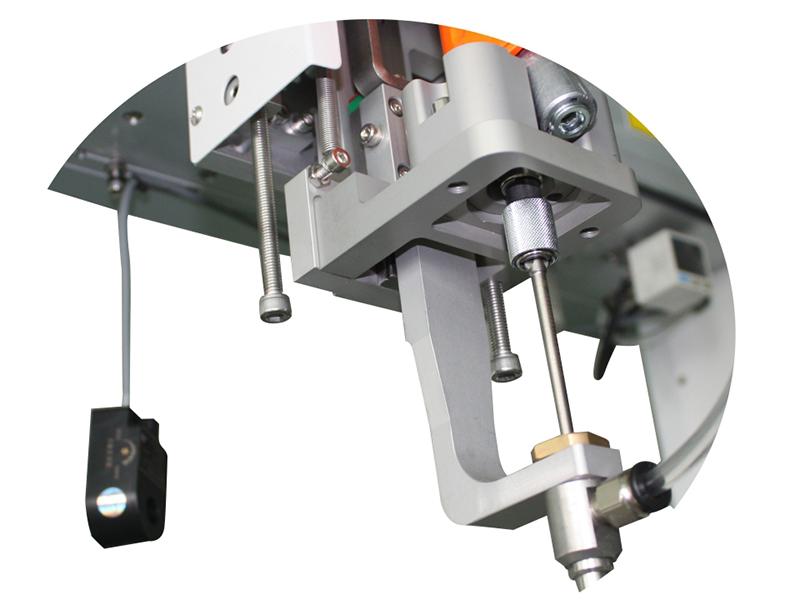

  • Screws of M1.0-M4.0 can be fastened using this machine by replacing screw conveyer, suction nozzle and screwdriver bit.
  • The screw driving robot is compact in size and is easy to pair with a production line. Automatically pick and tighten screws, greatly improve working efficiency.
  • The double XY-axis design can realize the alternate operation and eliminate the time of picking and placing products, which maximize the production efficiency.
Technical parameters
  • Dimension: 680*620*640mm(L*W*H)
  • Working range: 220*410*70mm(X*Y*Z)
  • Drive mode: 4 axis precision stepper motor
  • Positioning accuracy: ±0.02mm
  • Guide rail: high quality slide rail from internationally well-known brands
  • Control system: PLC+touch screen
  • Screw feeding mode: suction type
  • The number of screw feeder: 1 set
  • Type of programming: Teaching type
  • Fastening speed: less than 1.2S/pcs
  • Program memory: 100 sets, 100 points/set(max.)
  • COM port: USB
  • Power supply: 220VAC, 50HZ
  • Air pressure: ≥0.4Mpa
  • Net weight: 60kg
