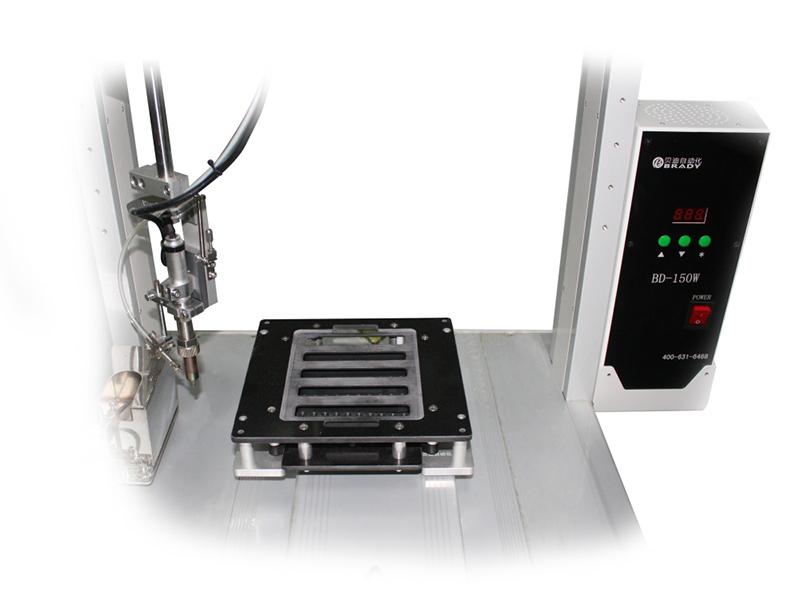

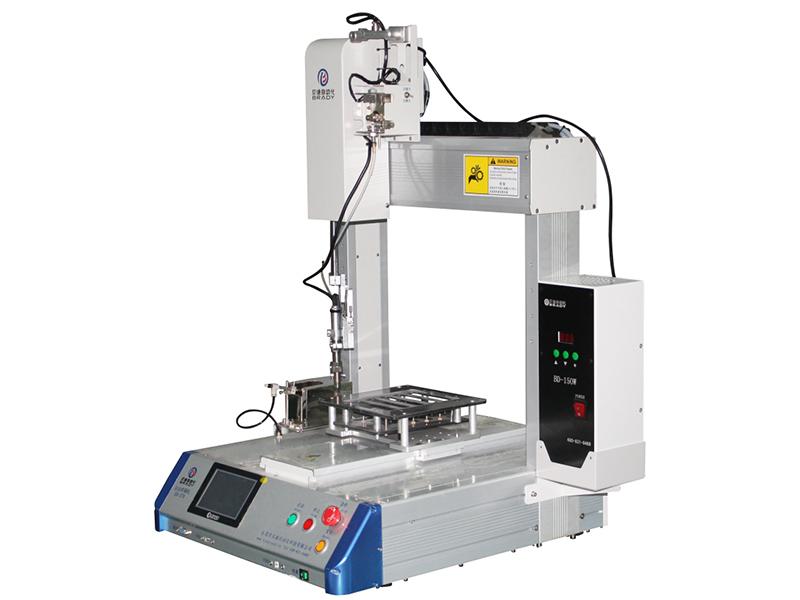

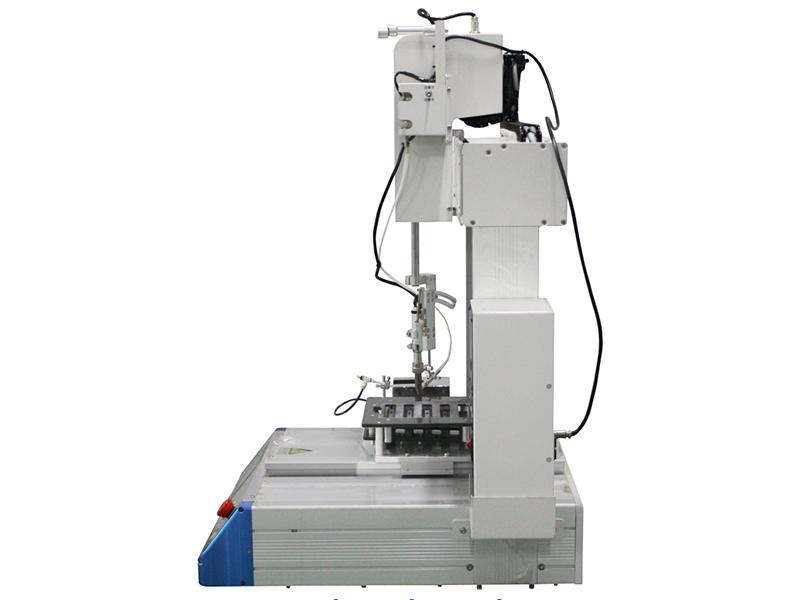

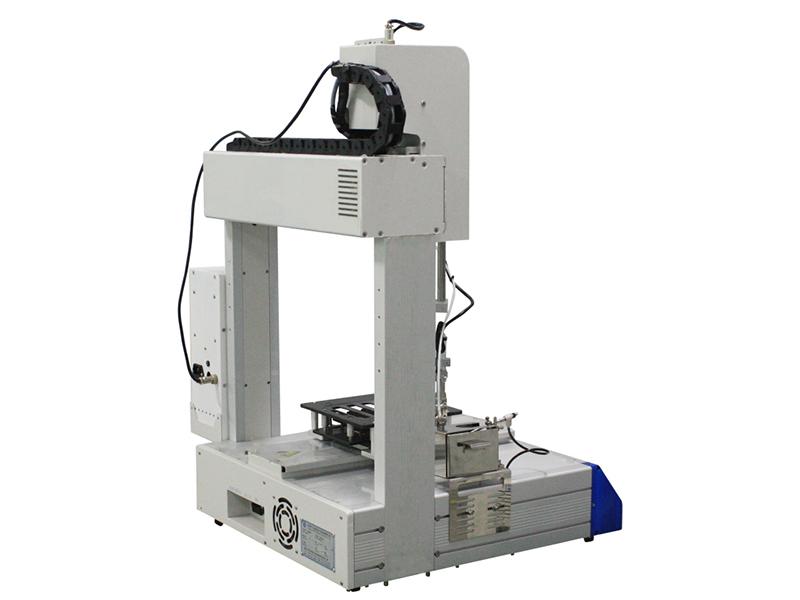

SD-370 automatic soldering robot is suitable for soldering of various electronic products. Adopting five-axis motion control system, including Z, Y1, Y2, Z, R axes, the soldering robot has accurate solder joints positioning. This auto-soldering system features high heating efficiency, fast heating speed and good soldering quality.

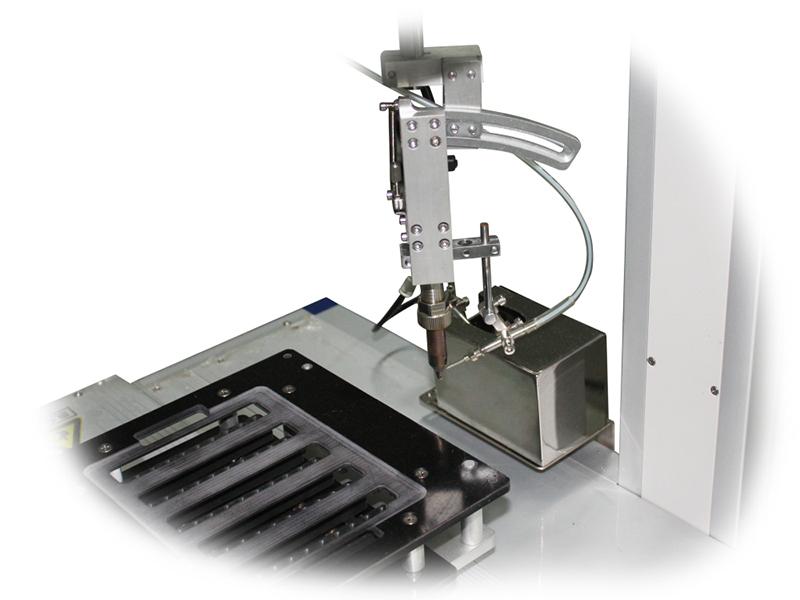

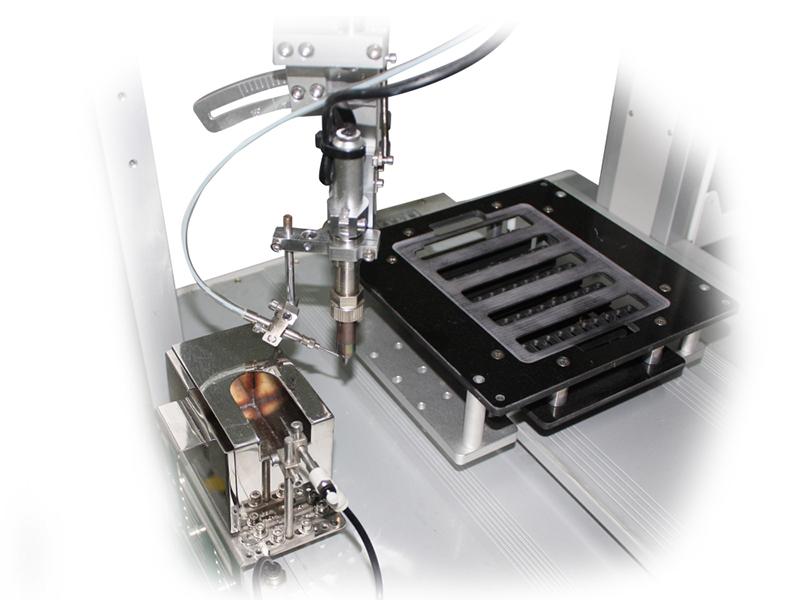

• The soldering robot has functions of spot welding, drag soldering and automatic cleaning.
• It has functions of automatic positioning, copying, arrangement and position correction.
• Various parameters in the soldering process can be set to guarantee the soldering quality.
• The 5 inches touch screen can provide a simple interface, leading to an easy and fast operation.
• The slideway and lead screw is adopted to transmit power, which leads to a high accuracy motion.

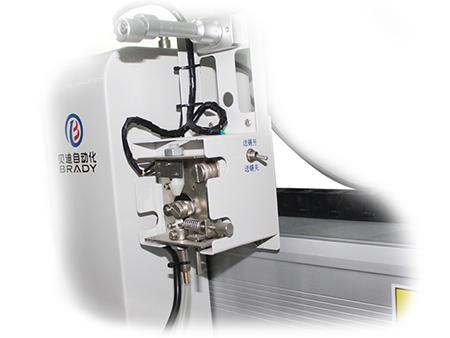

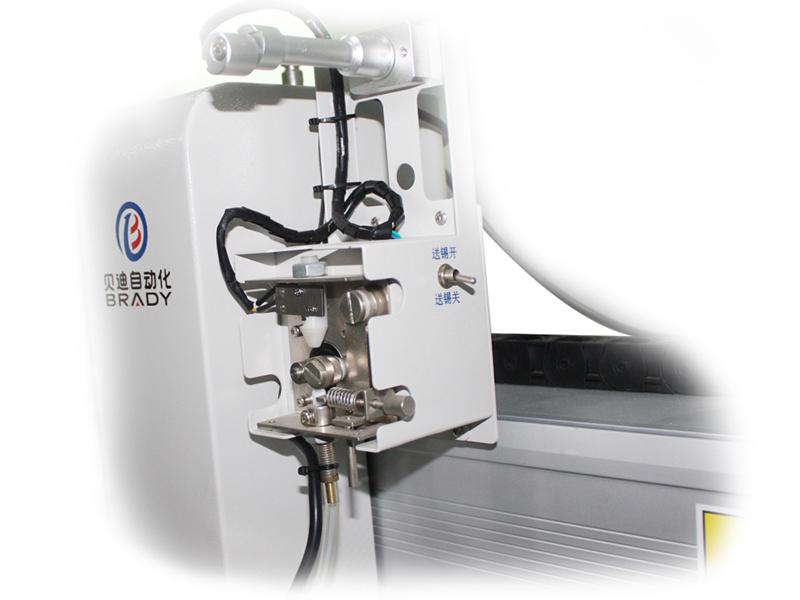

• The automatic soldering system adopts automatic solder wire feeder with editable multi-stage solder wire feeding mode.

• Dimension: 520*500*700mm(L*W*H)
• Working range: 400*400*100mm(X*Y*Z)
• Number of platforms: 1 (single Y axis operating)
• Drive mode: 5 axis precision stepper motor
• Position accuracy: ±0.02mm
• Position accuracy of R axis: ±0.05°
• Program memory: 256 sets, 400 points/set
• Temperature control power: 150W/320W
• USB port: programs interoperable among many machines.
• Power supply: 220V，50HZ
• Air pressure: 0.3MPa
• Net weight: 40Kg
