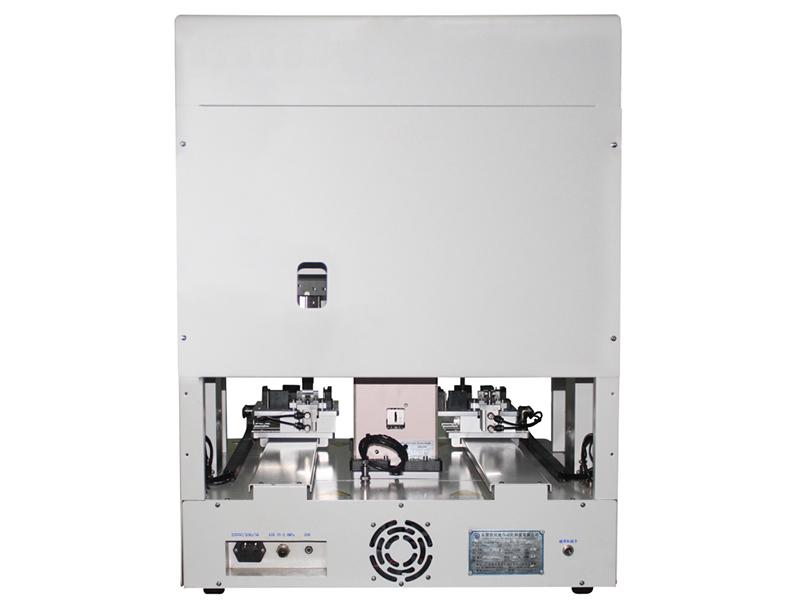

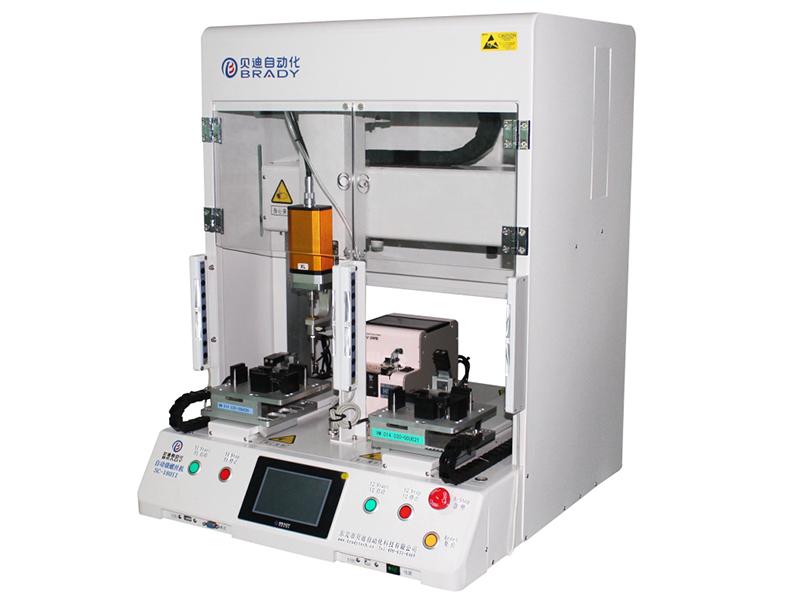

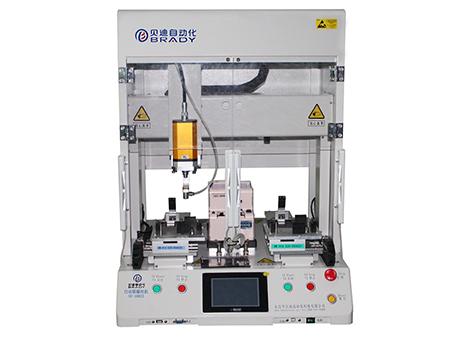

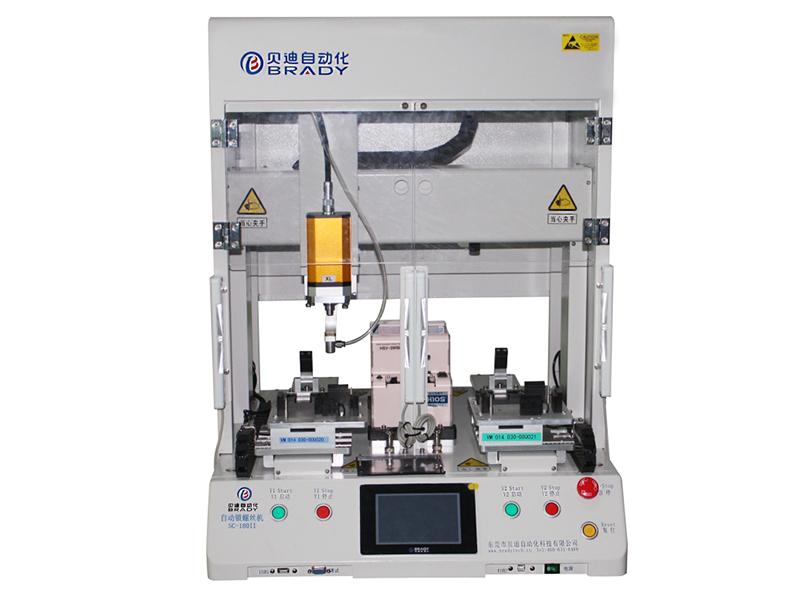

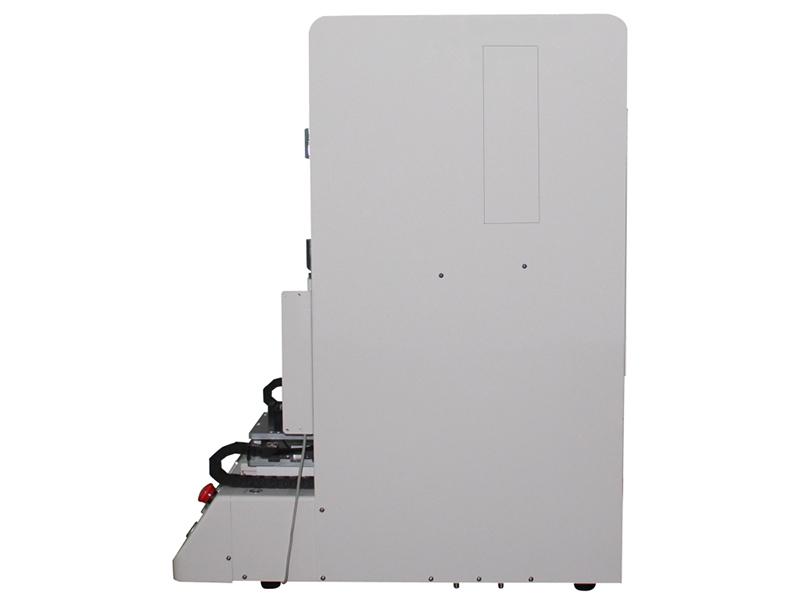

SC-180II-S Screw Driving Robot

SC-180II-S Screw Driving Robot
SC-180II-S Screw Driving Robot SC-180II-S Screw Driving Robot SC-180II-S Screw Driving Robot SC-180II-S Screw Driving Robot

SC-180II-S screw driving robot adopts 4-axis precise stepper motor and double Y-axis design, which makes it has high flexibility and work efficiency. It is widely used for screw fastening on electronic products.

Characteristics
  • SC-180II-S Screw Driving Robot
  • SC-180II-S Screw Driving Robot
  • SC-180II-S Screw Driving Robot
  • The screw driving robot realizes automatic detection of screw missing, screw slip teeth and floating lock.
  • Equipped with universal fixture, the robot has high flexibility and can be used in various types of products.

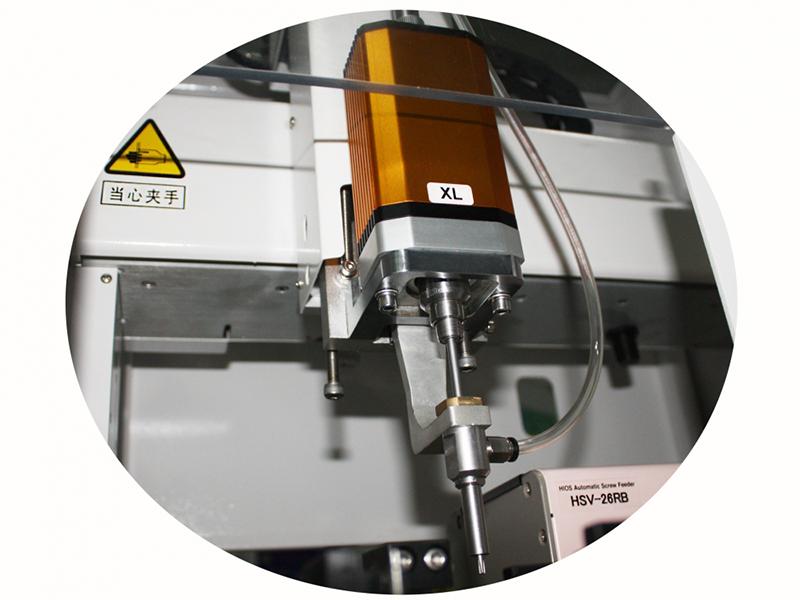

  • Screws of M1.0-M4.0 can be fastened using this machine by replacing screw conveyer, suction nozzle and screwdriver bit.
  • The screw driving robot is compact in size and is easy to pair with a production line. Automatically pick and tighten screws, greatly improve working efficiency.

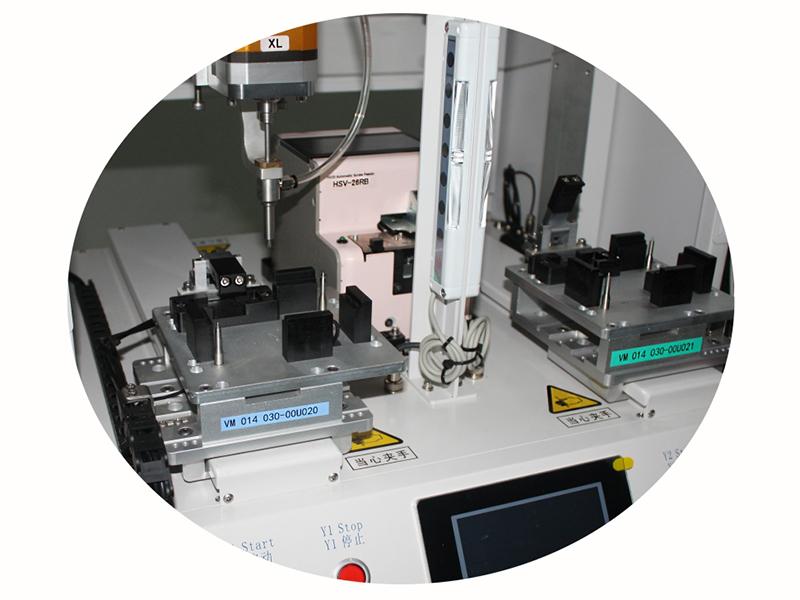

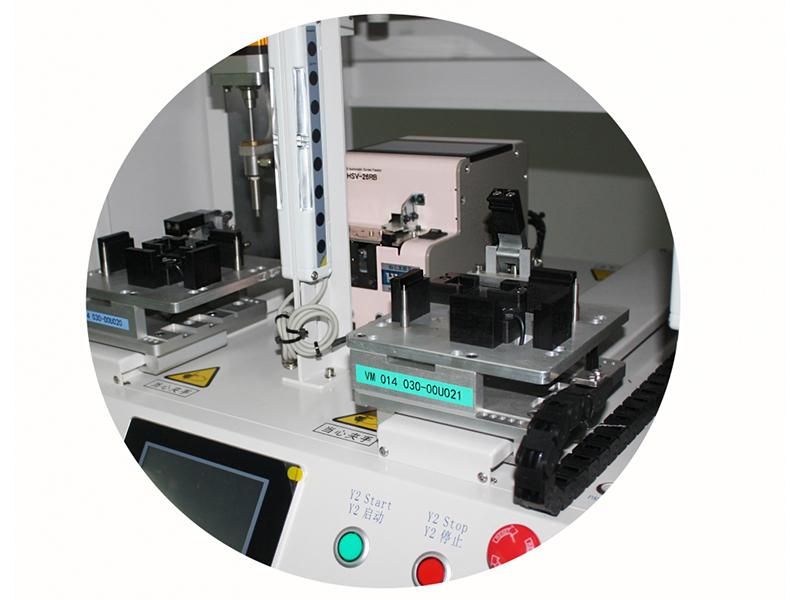

  • The double Y-axis design can realize the alternate operation and eliminate the wasted time of taking and putting products, which maximize the production efficiency.
Technical parameters
  • Dimension: 570*610*640mm(L*W*H)
  • Working range: 170*200*70mm(X*Y*Z)
  • Drive mode: 4 axis precision stepper motor
  • Positioning accuracy: ±0.02mm
  • Guide rail: high quality slide rail from internationally well-known brands
  • Control system: PLC+touch screen
  • Screw feeding mode: suction type
  • The number of screw feeder: 1 set
  • Type of programming: Teaching type
  • Fastening speed: less than 1.2S/pcs
  • Program memory: 100 sets, 100 points/set(max.)
  • COM port: USB
  • Power supply: 220VAC, 50HZ
  • Air pressure: 0.4Mpa
  • Net weight: 60kg
