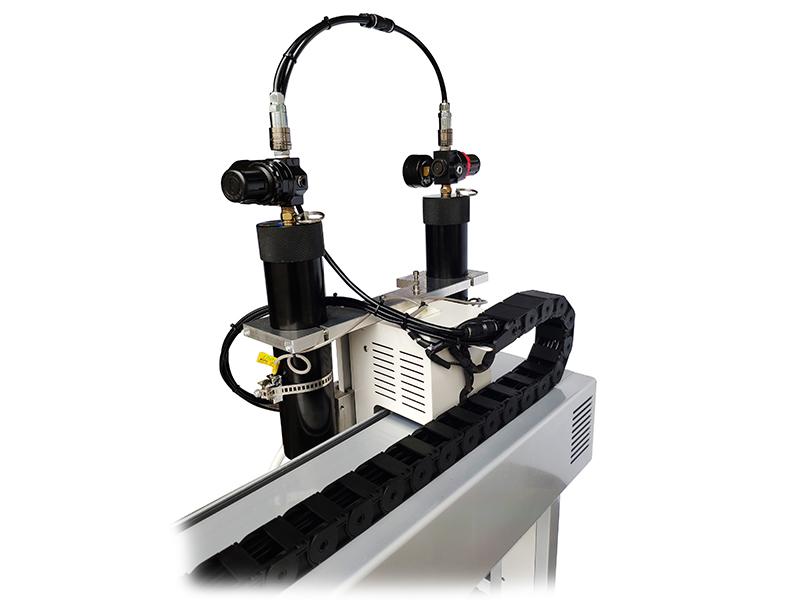

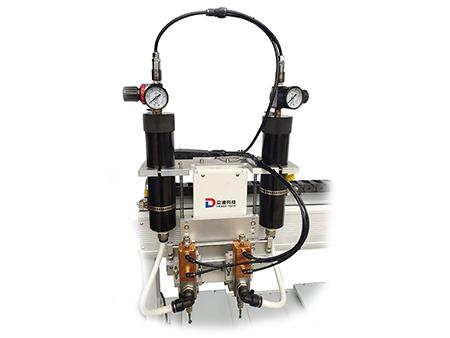

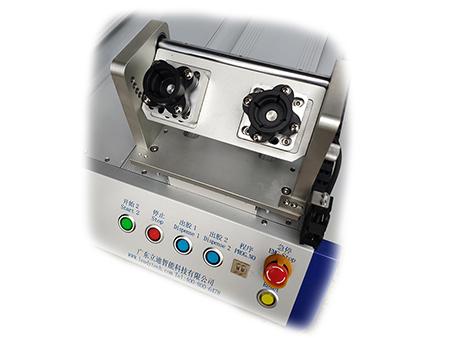

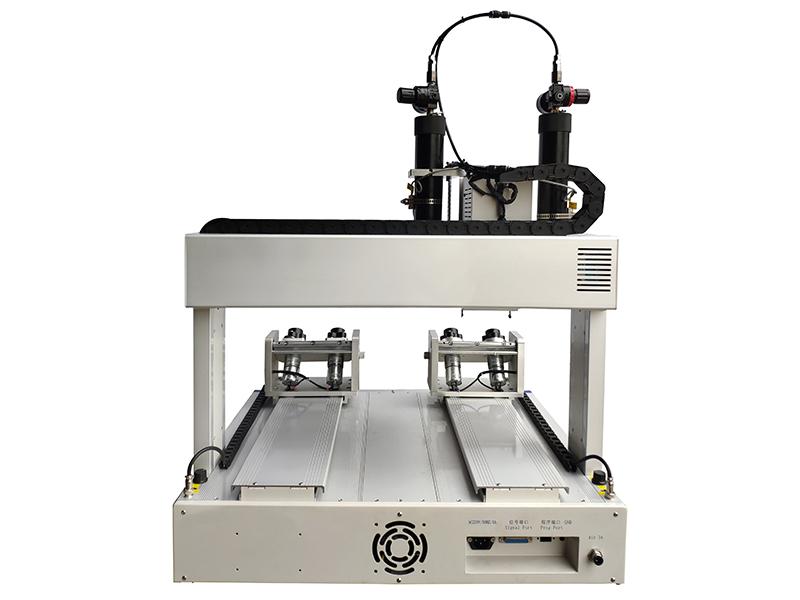

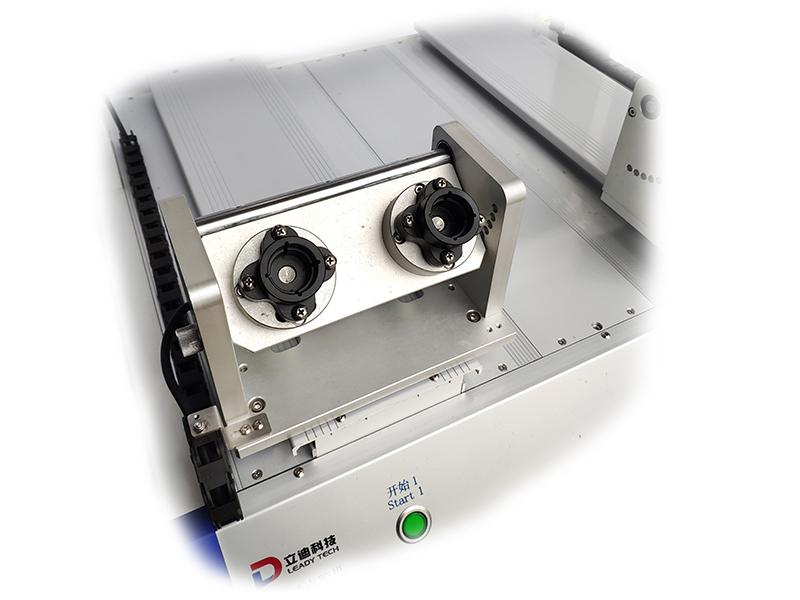

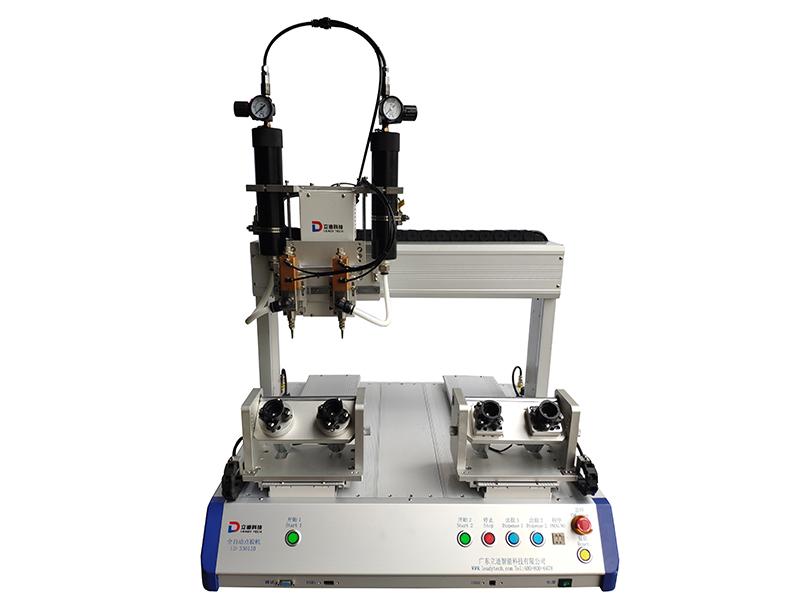

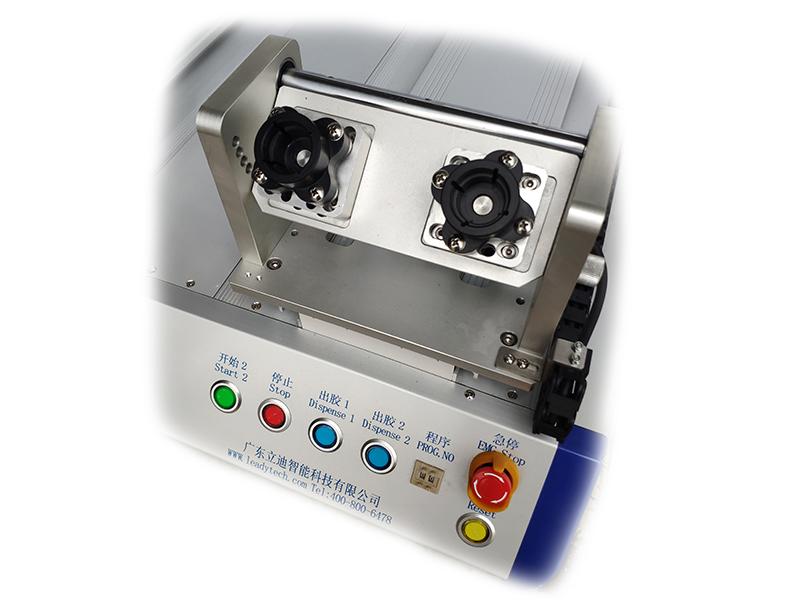

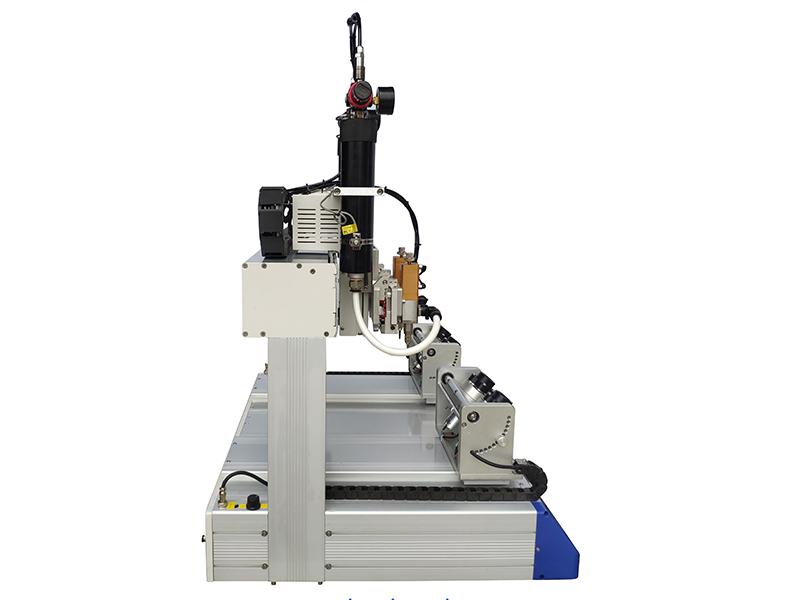

Desktop Dispensing Robot

Desktop Dispensing Robot
Desktop Dispensing Robot Desktop Dispensing Robot Desktop Dispensing Robot

This desktop dispensing robot has powerful functions and can complete dispensing and potting operations with high quality. It can process precision products such as integrated circuits, printed circuit boards and electronic components and is widely used in industries of electronic goods, LED lamps, intelligent household appliances, packaging boxes, etc. By realizing many processes that manual dispensing cannot complete, the robot can greatly improve production efficiency, quality and reduce labor costs.

Characteristics
  • Desktop Dispensing Robot
  • Desktop Dispensing Robot
  • Desktop Dispensing Robot
  • Desktop Dispensing Robot
  • Equipped with four-axis stepper motor, the dispensing robot can precisely control the position and volume of dispensing.
  • Equipped with a programmable dispensing control system, the robot has functions of position correcting, copying, arrangement and automatic positioning. It can realize any dispensing pattern in plane such as X, Y, W and spiral shaped pattern.

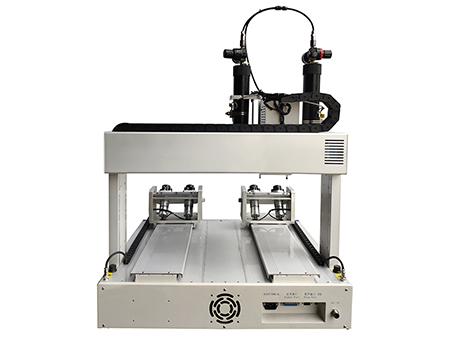

  • Double-Y-axis working form is available for you to realize alternate processing, which maximizes the production capacity.
  • Single-screwdriver-head, double-screwdriver-head, horizontal, tilted and rotary dispensing all can be achieved with this robot. You can also choose the special tilted rotary dispensing to realize fast circumference dispensing.
Technical parameters
  • Dimension:630*620*800mm(L*W*H)
  • Working range:500*420*110mm(X*Y*Z)
  • Design capacity:800~1000pcs/h
  • Dispensing accuracy:±0.5g
  • Equipment accuracy:±0.15mm
  • Drive mode: 4 axis precision stepper motor
  • Control system:PLC motion control system
  • Program memory: 256 sets, 400 points/set
  • Dispensing mode: one end, double-end, horizontal, tilting, rotary
  • Dispensing control system: handheld and programmable
  • COM port:USB
  • Power supply:AC220V,50HZ
  • Total power:350W
  • Air pressure:0.5-0.7MPa
  • Net weight:30Kg
  • Rated current:5A
  • Air pressure:0.5MPa
  • Design capacity:50~60pcs/h
  • Product qualification rate:≥85%
  • Control system: PLC+human interface
Inquiry
Other Products
    1. SMT Dispensing Machine with Pick-and-Place
    2. SMT Dispensing Machine with Pick-and-Place
    1. SD-370 Automatic Soldering Robot
    2. SD-370 Automatic Soldering Robot
    1. SD-450 Automatic Soldering Robot
    2. SD-450 Automatic Soldering Robot

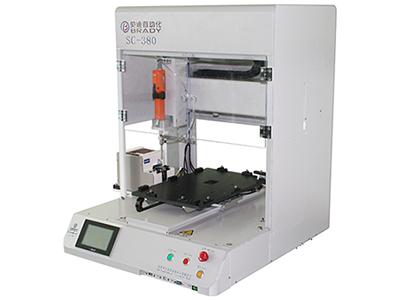

    1. SC-380 Screw Driving Robot
