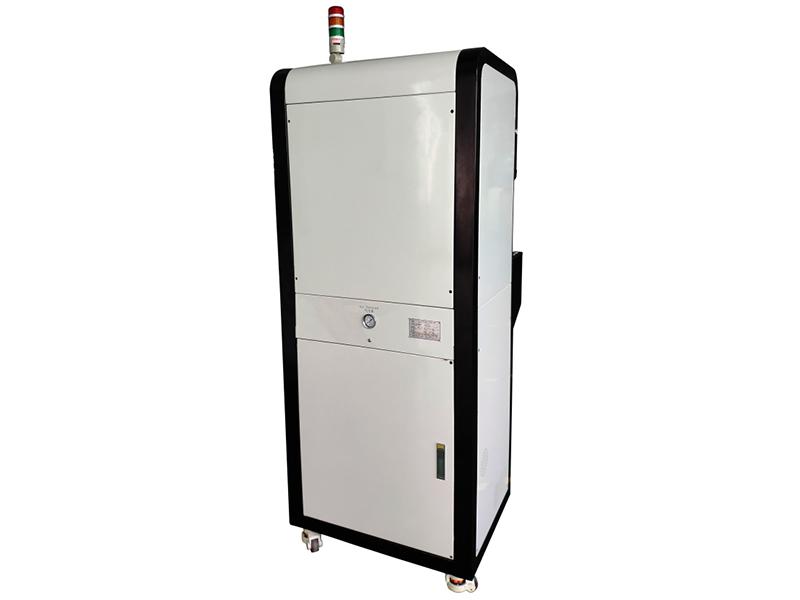

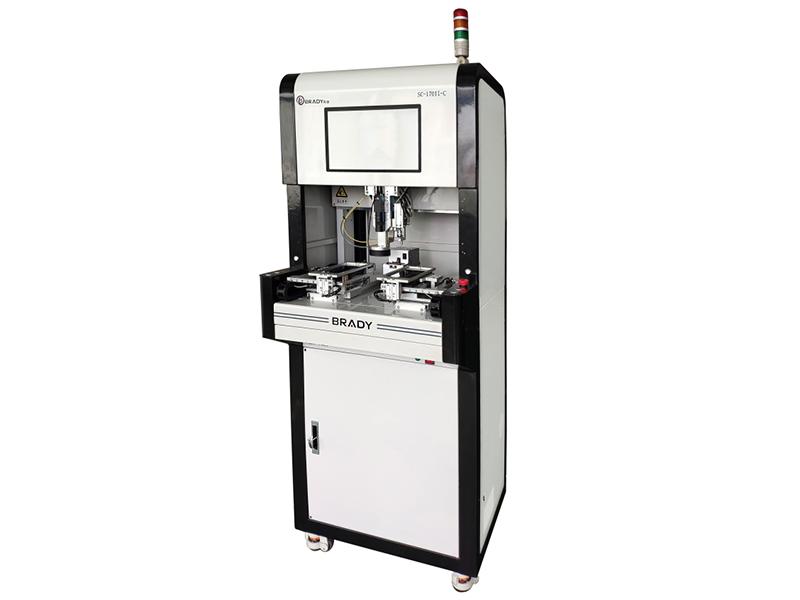

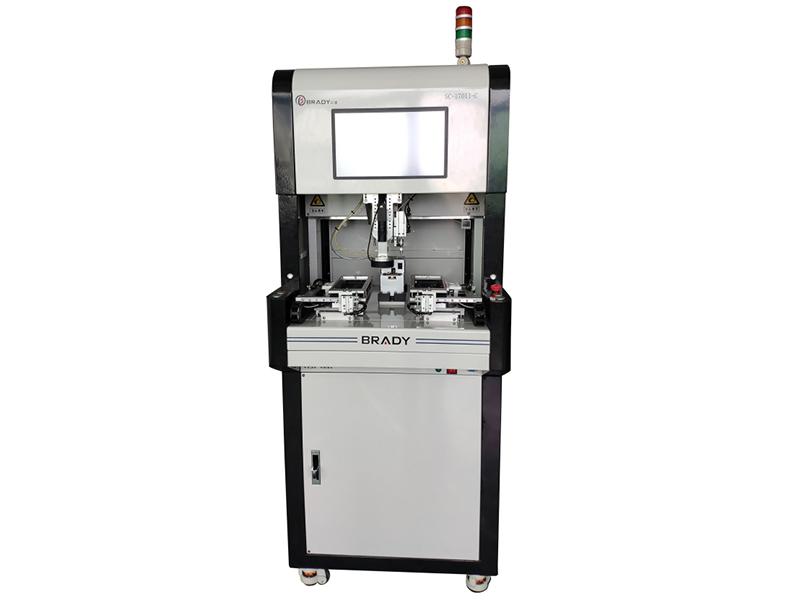

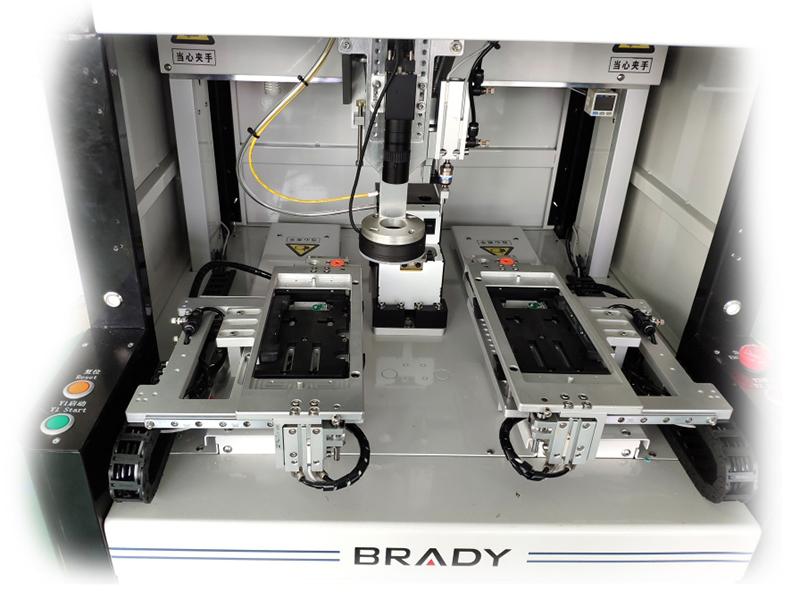

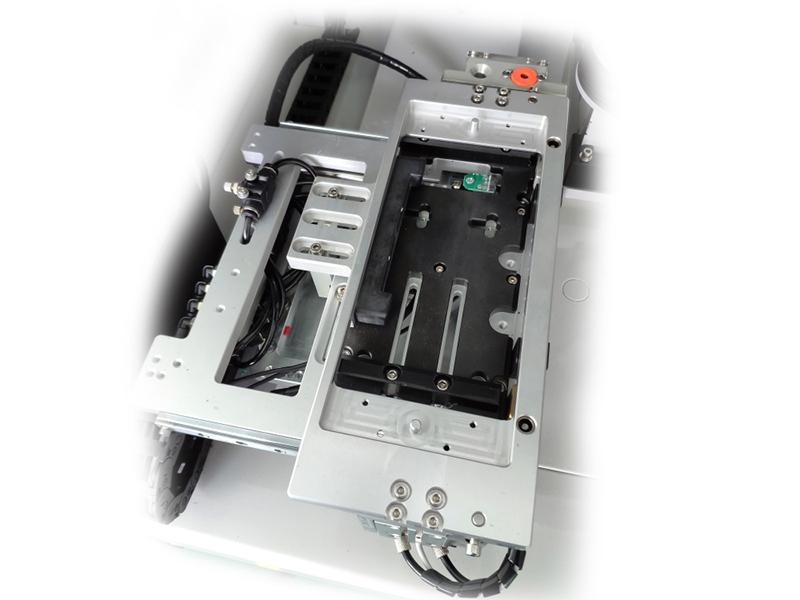

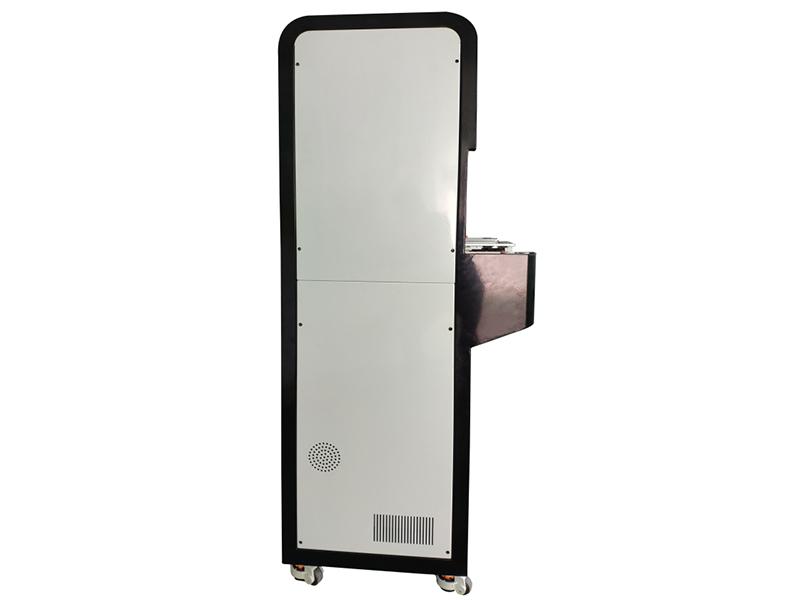

SC-170II-C Screw Driving Robot with CCD Camera

SC-170II-C Screw Driving Robot
SC-170II-C Screw Driving Robot SC-170II-C Screw Driving Robot SC-170II-C Screw Driving Robot SC-170II-C Screw Driving Robot

SC-170II-C screw driving robot adopts four-axis precision stepper motor and CCD vision positioning system, making it suitable for fastening small screws on various precision electronic products. The robot can greatly improve production efficiency due to its high automation.

Characteristics
  • SC-170II-C Screw Driving Robot
  • SC-170II-C Screw Driving Robot
  • SC-170II-C Screw Driving Robot

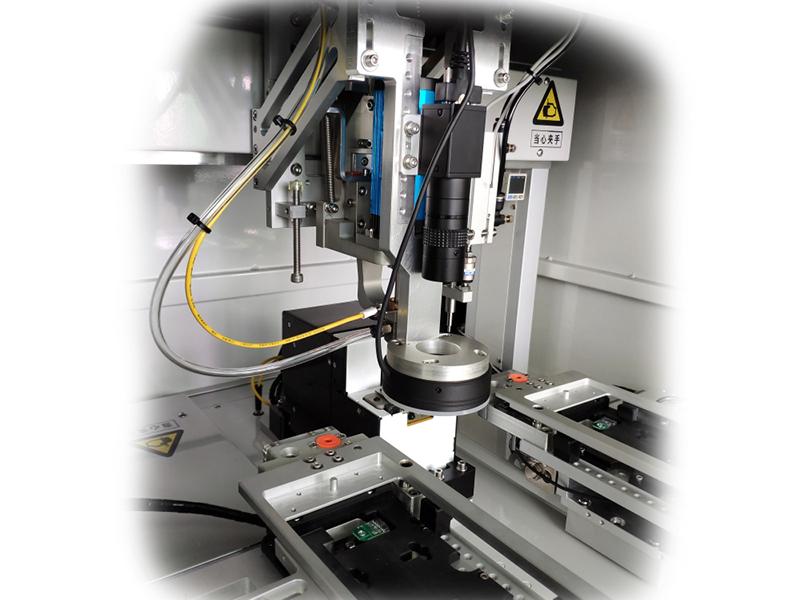

  • Advanced CCD vision positioning system and screw fastening control system are used.
  • The screw points positioning is more accurate assisted by CCD, which avoids human visual errors.
  • Defective screw holes can be automatically detected by CCD.
  • The position of the defective screw holes will be shown in a picture to help you find the point.
  • PC motion control system is adopted, which enables visual programming and unlimited data storage.
  • The screw driving robot can intelligently read the product’s CAD or Gerber data to get the coordinate value of XY.
  • With a screw height displacement sensor, the height of the screw can be automatically detected.
  • Smart screwdriver bit can be set with various torsion and speed. Both the waveform and value of torsion can be output.
  • The screw driving robot realizes efficient detection of screw missing, screw slip teeth and floating lock.
Technical parameters
  • Dimension: 600*650*1650mm (L*W*H)
  • Working range: 170*200*70mm (X*Y*Z)
  • Drive mode: 4 axis precision stepper motor
  • Operating system: Windows 7
  • Control system: PC+high precision industry CCD+high performance motion control card
  • Intelligent precision screwdriver: different screwdriver bits available (The torque and speed can be set in any value)
  • Type of programming: CCD coordinate loading+ CAD lead through programming+ CCD teach pendant
  • Fastening speed: 2.0-2.5s/pcs (depending on the size of the screw)
  • Operation interface: 15 inches LCD+keyboard+mouse
  • Power supply:220VAC, 50HZ
  • Air pressure:0.4Mpa
  • Net weight:160kg
