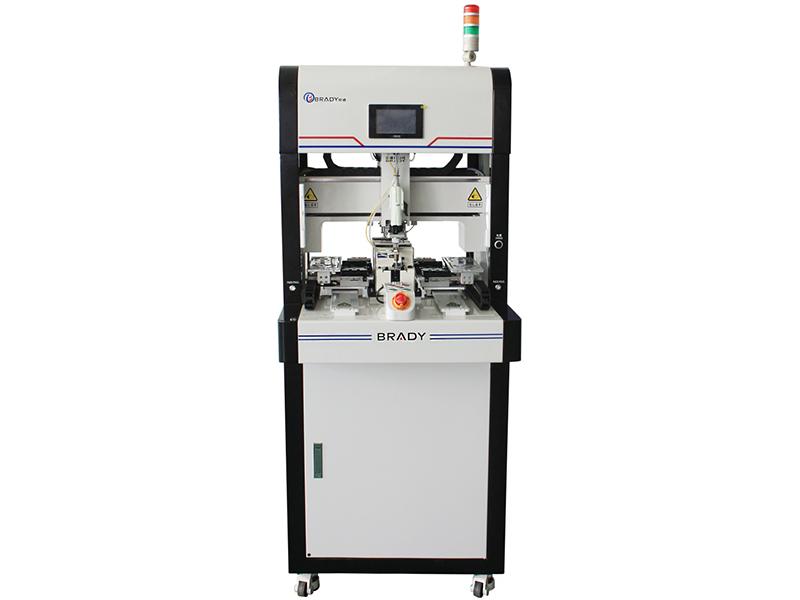

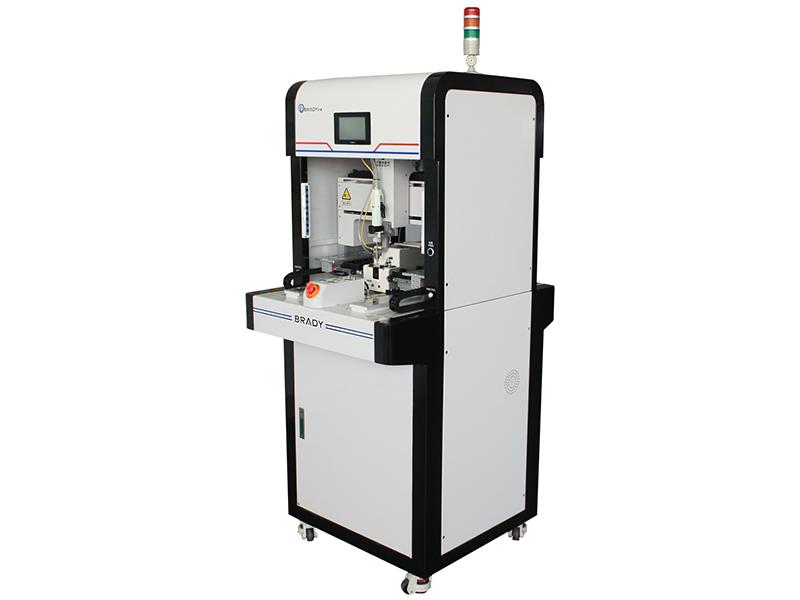

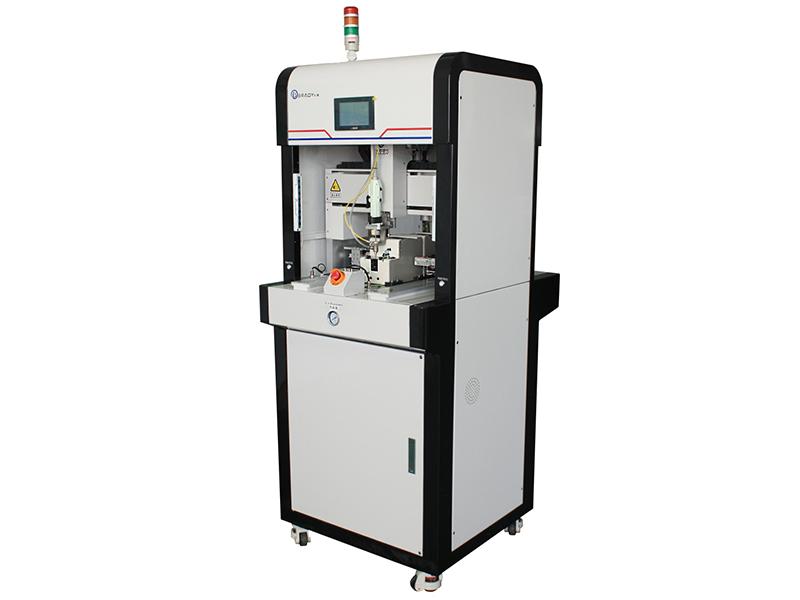

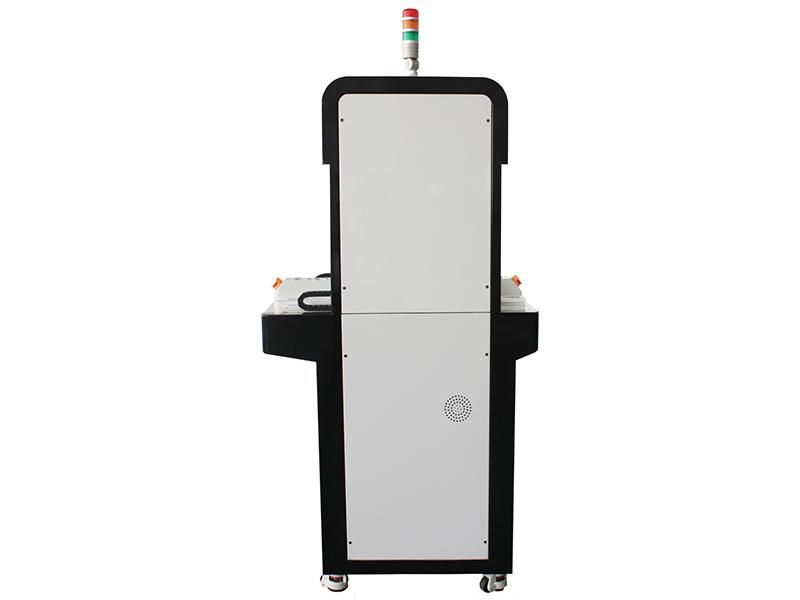

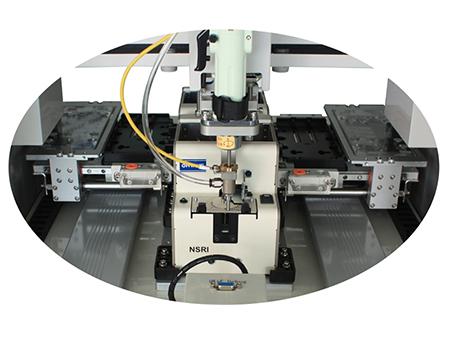

Equipped with 6-axis precision stepper motor, SC-210II-DT screw driving robot features double-screwdriver-head double-platform structure, which makes it has high flexibility. The robot can be used for screw fastening in various electronic products, such as mobile phones, cordless phones, calculators, navigators, audio, cameras, etc. It can meet the demand of screw fastening in industries of electronics, communication, intelligent household appliances, toys, etc. to help you improve work efficiency, production qualification rate and reduce labor costs.

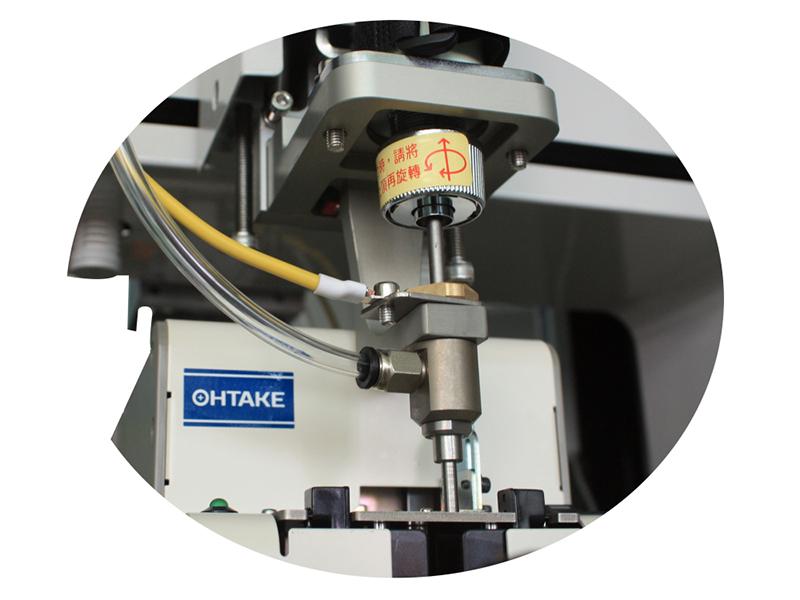

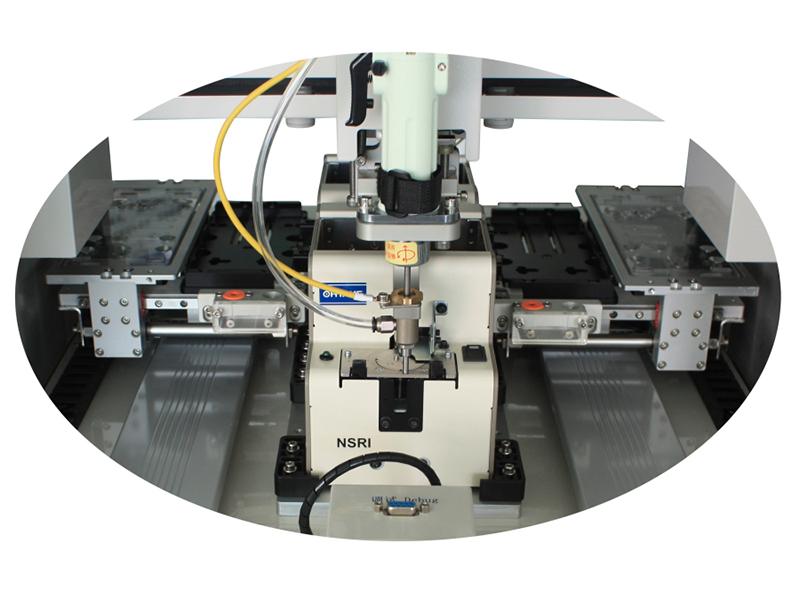

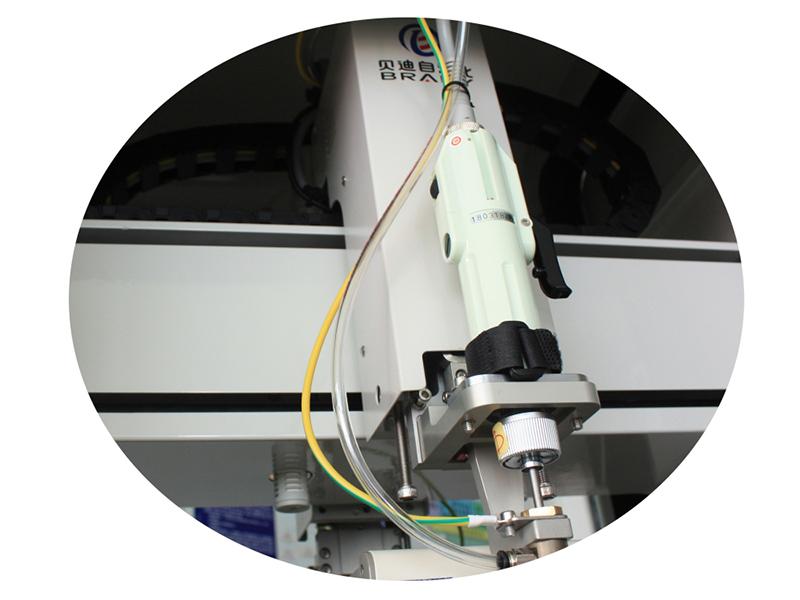

• Adopting double-screwdriver-head double-platform structure, the screw driving robot can fasten two kinds of screws with different torque value.
• The screw driving robot realizes efficient detection of screw missing, screw slip teeth and floating lock.
• When screw with height displacement≥ 1.5mm is detected, the robot will automatically withdraw the screw and fasten it again.
• The screw driving robot has a function of showing the inaccurate screw fastening location.
• It has a function of counting the accurately and inaccurately fastened screw.
• The machine will count the screwdriver head and suction nozzle using time and remind you to replace them in time.
• Adopting universal fixture, the robot is suitable for fastening screws on different sizes of mobile phones.
• Automatically pick and tighten screws, greatly improve working efficiency.
• Safety light curtain is adopted to allow for high protection.

• Dimension: 600*840*1620mm（L*W*H）
• Working range: 170*255*70mm（X*Y*Z）
• Drive mode: 6 axis precision stepper motor
• Positioning accuracy: ±0.02mm
• Guide rail: high quality slide rail from internationally well-known brands
• Control system: PLC+touch screen

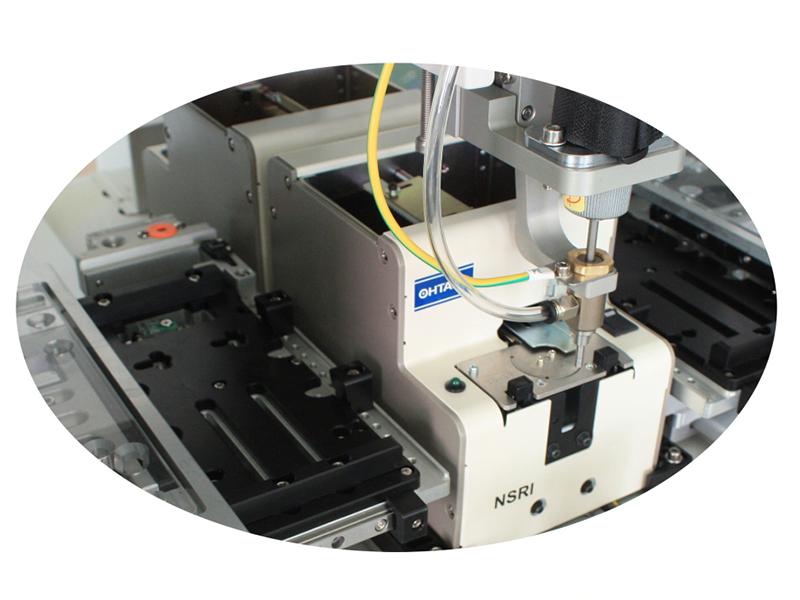

• Screw feeding mode: suction type
• Type of programming: Teaching type
• Fastening speed: 1.5s-2.0s/pcs
• COM port: USB
• Power supply: 220VAC, 50HZ
• Air pressure: ≥0.4Mpa
• Net weight: 100kg
