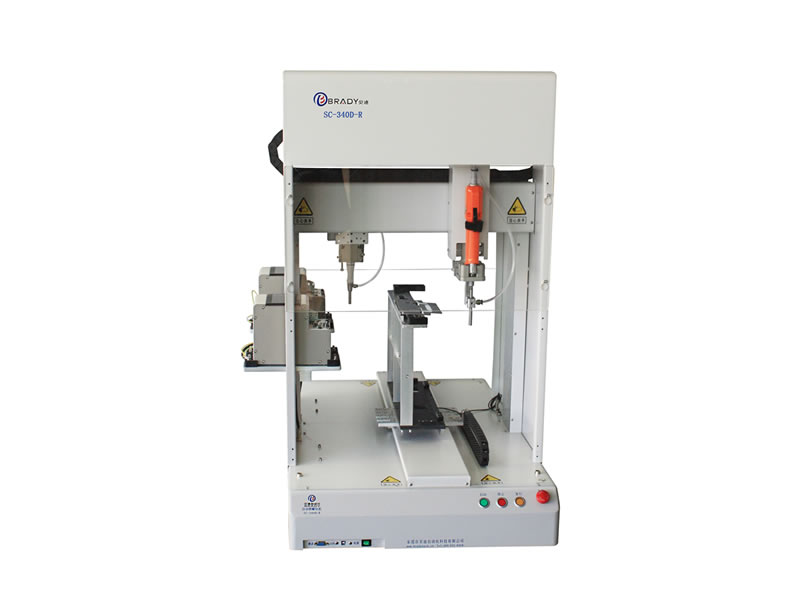

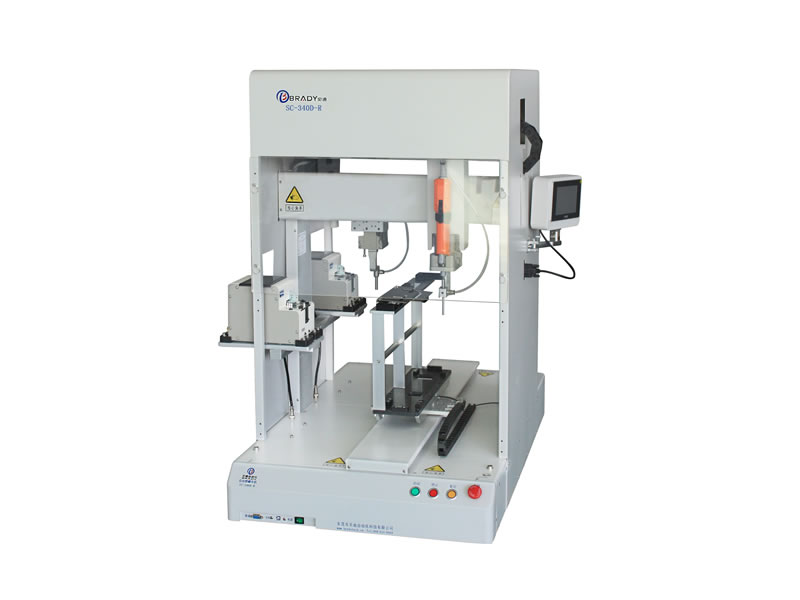

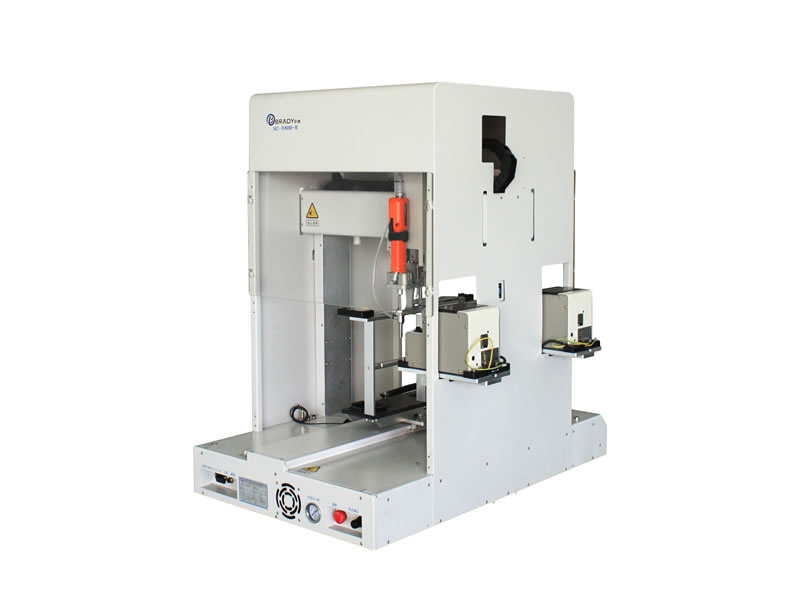

SC-340D Screw driving robot is applicable to various electronic products screw locking such as smartphone, wireless telephone, calculator, GPS, sound equipment, small appliances etc.

• The screw driving robot has an automatic detection of screw missing, screw slip teeth and floating lock.
• Excellent flexibility. Equipped with universal fixture which allows this screw fastening system to be used on various products.
• Excellent versatility. Screws of M1.0-M8.0 can be fastened using this machine by replacing different accessories.
• The screw driving robot is compact in size and is easy to pair with a production line. Automatically screws loading in front and unloading from rear, realizing unmanned operation.
• The system supports the recording of the number of turns, torque, date, time of each screw as well as the locking status judgement.
• With the function of loading in front and unloading from rear to save the labor.
• With large worktable of 500*500mm.

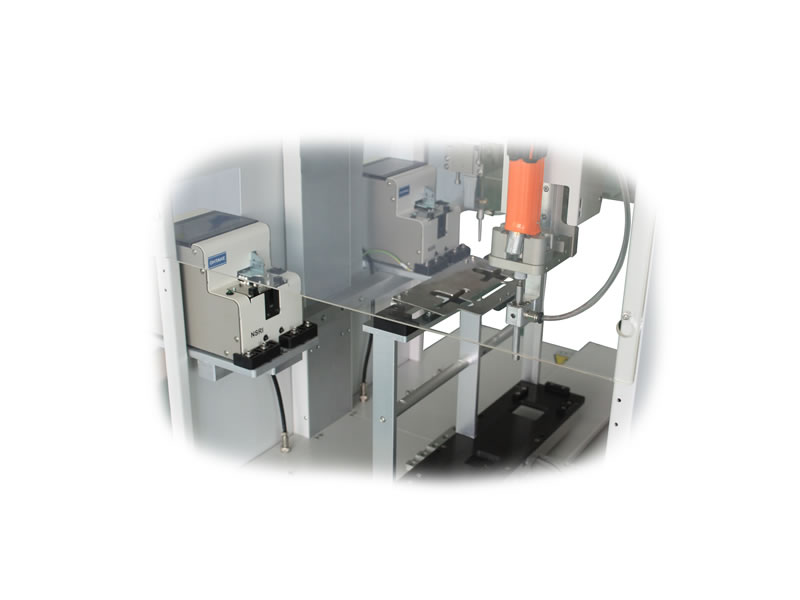

• Adopt double Y-axis design which allows alternate operation for higher work efficiency.
• Optional protective cover.

• Dimension: 610*1000*1000mm (L*W*H)
• Working range: 450*400*70mm (X*Y*Z)
• Drive mode: 6 axis precision stepping drive
• Position accuracy: ±0.02mm
• Guide rail: Import slid rail
• Electric screwdriver: HIOS 2pcs

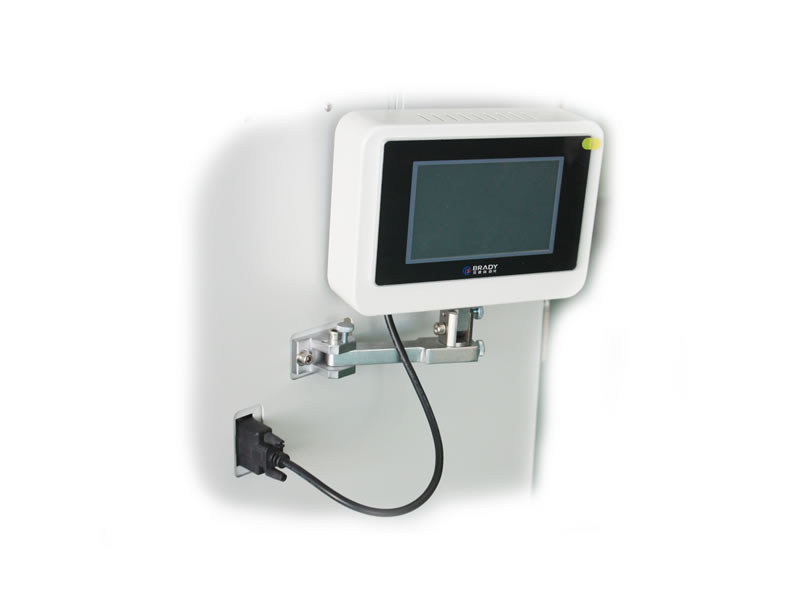

• Control system: PLC + Touch screen control system

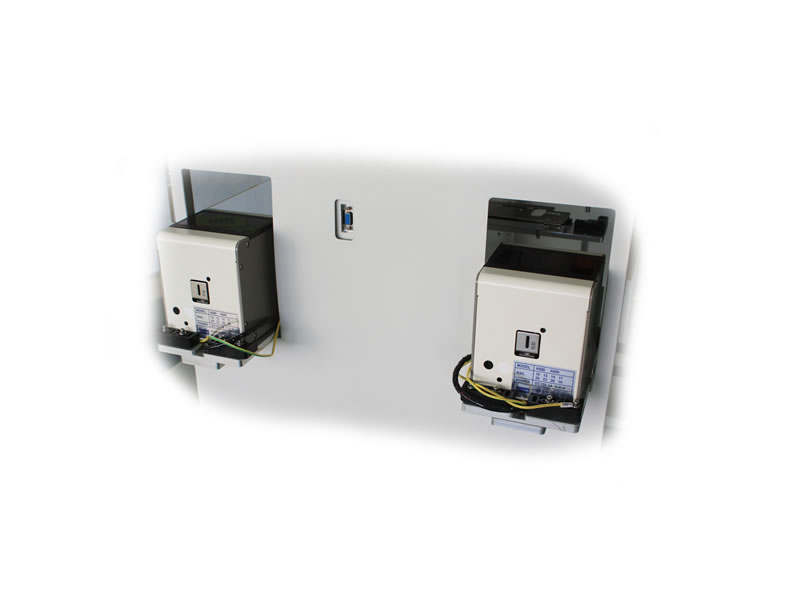

• Screw feeding mode: suction type
• Quantity: 2 group
• Type of programming: Teaching type
• Fastening speed: Less than 1.5S / pc
• Program memory: 100 sets, 110 points/set (max.)
• COM: USB
• Power supply: 220VAC、50HZ
• Air pressure: 0.4Mpa
• N.W: 90kg
