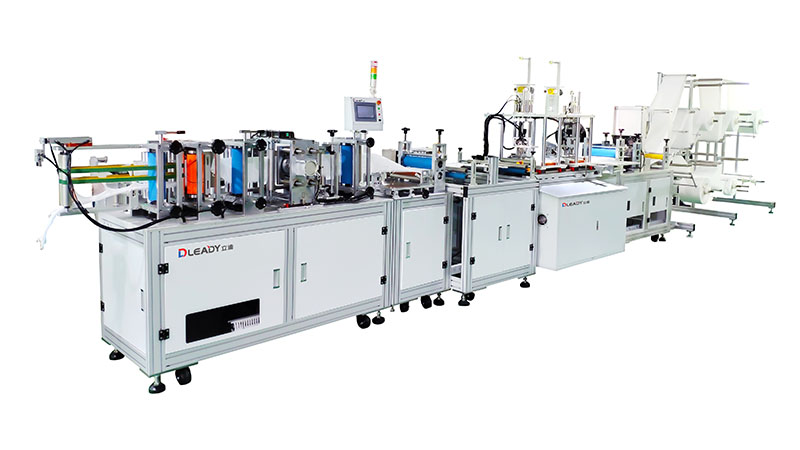

Automatic KN95 Mask Production Line

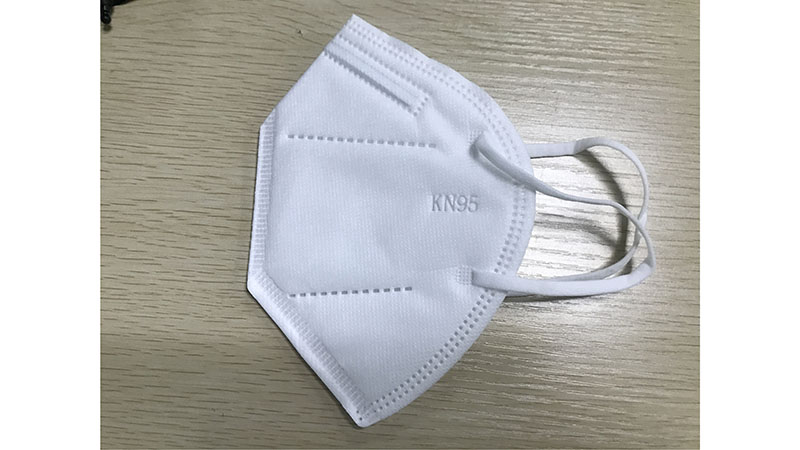

The full-automatic production line for producing KN95 face masks made using non-woven fabrics and Melt-blown fabric with 3~6 layers.
The main automation processes include the coil material feeding, nose bridge line feeding, mask knurling ultrasonic welding, ear tape ultrasonic welding, mask folding forming, mask edge ultrasonic welding and mask die cutting, etc.

- Uses ultrasonic welding masks
- Automatically assemble the mask without operators
- High production capacity with 1800~3000pcs/h
- Applies to the production of 3~6-layer masks
- Features stable performance and good quality

• Model: LD-KN95
• Machine size: 9830*1500*2180mm (L*W*H)
• Operating mode: Fully-automatic
• Mask specification: 160*105mm (L*W)
• Control system: PLC/ Relay
• Working voltage: AC220V 50/60Hz
• Power: 20KW
• N.W: 1500KG
